  • IHF Series Teflon Lined Centrifugal Pump

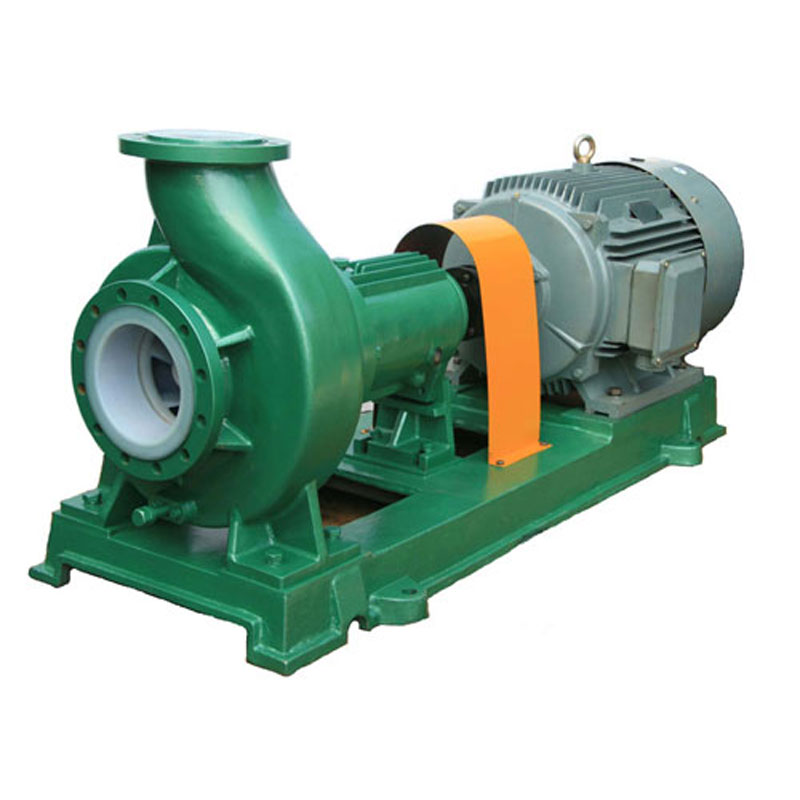

IHF Series Teflon Lined Centrifugal Pump

IHF Series Teflon Lined Centrifugal Pump

  • Design Standard;ISO2858
  • Lining Material:FEP
  • Flow rate:3m³/h~400m³/h
  • TDH:5~80M
  • Product description: IHF series pump is a single-stage single-suction fluoro plastic lined chemical centrifugal pump.designed per as the national standard.
  • INQUIRY

Fluorine Plastic (F46, PTFE, PFA lining) Lined Chemical Process Pump for Highly Corrosive Acid, Hci (IHF) , Centrifugal Pump, Transfer Pump, Industrial Pump
Overview

IHF Fluorine Plastic Lined Chemical Pump, Centrifugal Pump, Transfer Pump, Industrial Pump is made according to the international standards and combining nonmetal pump design process. Pump body adopt metal casing lining FEP (F46), pump cover, impeller and bushings use metal embedded parts coating fluorine plastic sintering, shaft seals use out-fitted type advanced bellows mechanical seal, static ring choose 99.9% alumina ceramics (or si3n4), rotating ring adopt F4 filled material, its anti-corrosion and wear-resisting ability is extremely good.

Actual use showed that the pump has the advantages of anti-corrosion and wear-resisting, high temperature resistant, not aging, high mechanical strength, stable operation, advanced structure, reliable sealed performance, simple disassemble and maintenance, long service life etc.

Application
IHF fluorine plastic centrifugal pump is widely accepted by its anti-corrosion and wear-resistance advantages, is widely used in chemical, making acid, alkali manufacturing, smelting, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium. It is currently one of the most popular pump.

Model n=2900r/min n=1450r/min
Q(m3/h)
H (m) Power(kw) NPSH(m) Eff.(%) Q  (m3/h) H (m) Power(kw) NPSH(m) Eff. (%)
IHF40-25-125 6.3 20 1.5 3 41     5 0.55 3 35
IHF40-25-160 6.3 32 2.2 3 36 3.2 8 0.55 3 30
IHF40-25-200 6.3 50 4 3 30 3.2 12.5 0.75 3 25
IHF50-32-125 12.5 20 2.2 3 51 6.3 5 0.55 3 45
IHF50-32-160 12.5 32 4 3 46 6.3 8 0.55 3 40
IHF50-32-200 12.5 50 7.5 3 39 6.3 12.5 1.1 3 33
IHF65-50-125 25 20 3 3.5 62 12.5 5 0.55 3.5 55
IHF65-50-160 25 32 5.5 3.5 57 12.5 8 1.1 3.5 51
IHF65-40-200 25 50 11 3.5 52 12.5 12.5 1.5 3.5 46
IHF80-65-125 50 20 5.5 4 69 25 5 1.1 4 64
IHF80-65-160 50 32 11 4 67 25 8 1.5 4 62
IHF80-50-200 50 50 15 4 63 25 12.5 2.2 4 57
IHF100-80-125 100 20 11 4.5 77 50 5 1.5 4.5 74
IHF100-80-160 100 32 15 4.5 73 50 8 2.2 4.5 69
IHF100-65-200 100 50 30 4.5 73 50 12.5 5.5 4.5 68
IHF125-80-160 160 32 30 5 70 80 8 5.5 5 74
IHF125-100-200 200 50 55 5 65 100 12.5 11 5 71
IHF125-100-250                     100 20 7.5 5 67
IHF125-100-315                     100 32 15 5 68
IHF150-125-250                     200 20 18.5 5.5 69
IHF150-125-315                     200 32 30 5.5 71
IHF200-150-315                   400 32 75 7.5 63
