Z941W-16P Electric Stainless Steel Gate Valve

  • Product description: Wedge gate valve is one of the most common opening and closing valves. It uses wedge-shaped gate plates sealed on both sides to connect or cut off the medium in the closing path.Wedge gate valve does
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
GB/T12234
Structure length
GB/T 12221(long seriese)/GB/T3704
Nominal Diameter
DN15~DN500(mm) /1/2"~24"
Nominal pressure
PN0.6~4.0(MPa) ANSI CL150~300
Flange size
GBT9113.1 ASME B16.5
Pressure test
GB/T 13927
Driving mode
manual,electric, pneumatic

Lining Material:

We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M

Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

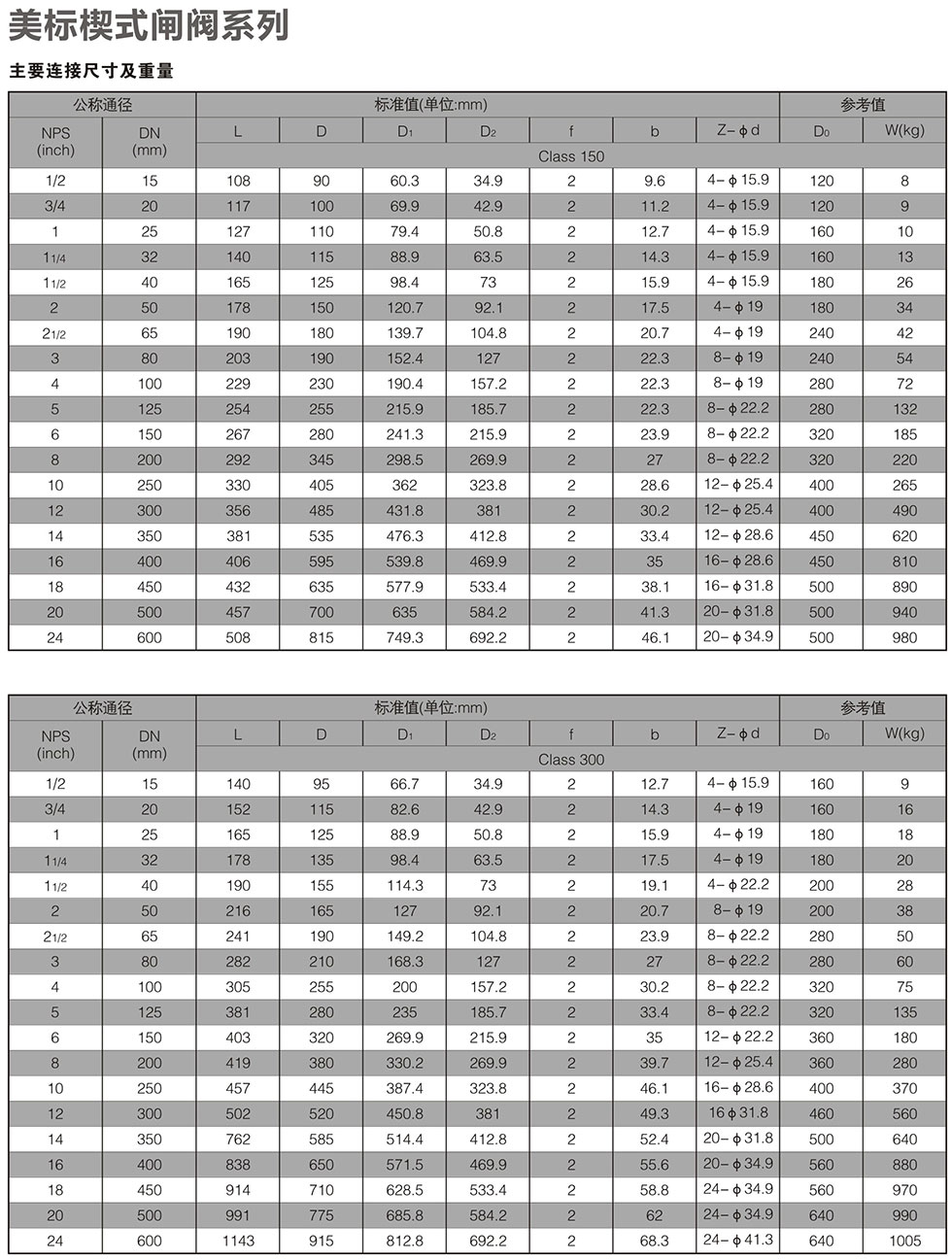

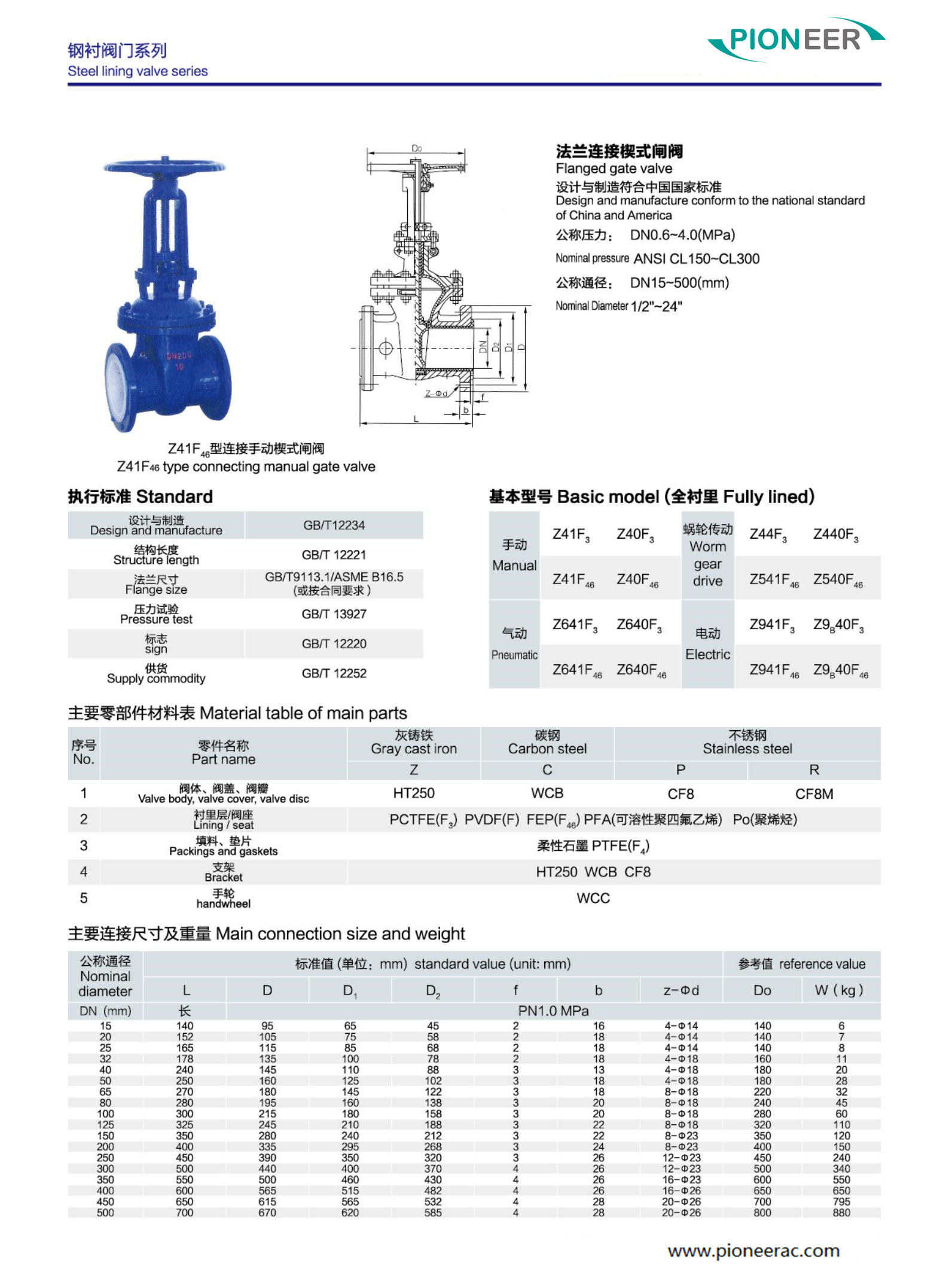

Technical Data:
