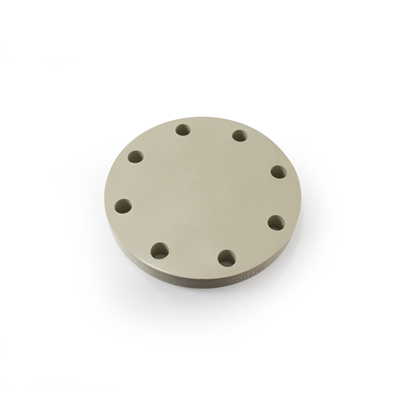

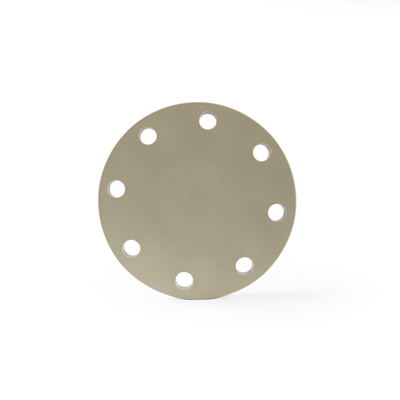

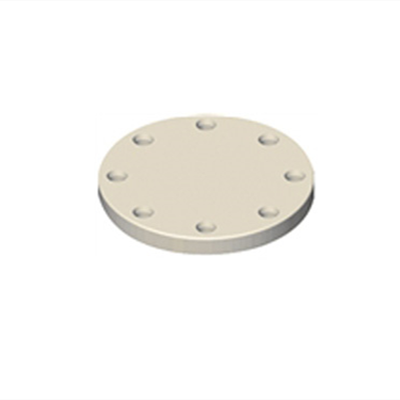

PP-H Blind Flange

  • Product description: PP-H Blind Flange
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Manufacture and design DIN 8077/8078
Nominal diameter DN15-400(mm)
Nominal pressure
PN10(MPa)
Pressure test
DIN, JIS10K
Connection Flange

Benefits&Features:

* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

Size Range:
* DN15 -DN400 mm

Pressure Rating:
S-5/SDR11, PN10/ISO

Temperature:
* -20°C ~ 110°C

Joining Technology
* Flange

Standard
* DIN 8077/8078

Materials:

* Beta Polypropylene Homopolymer (Beta PP-H)
