Lined pipe

  • PTFE Lined Dip Pipe
  • PTFE Lined Dip Pipe
  • PTFE Lined Dip Pipe
  • PTFE Lined Dip Pipe
PTFE Lined Dip PipePTFE Lined Dip PipePTFE Lined Dip PipePTFE Lined Dip Pipe

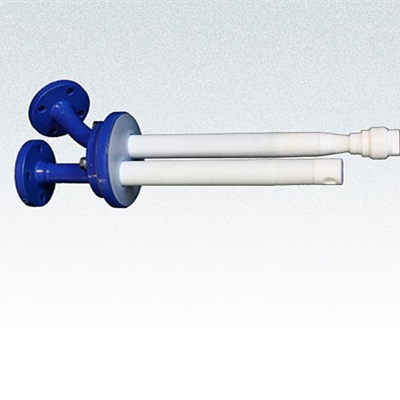

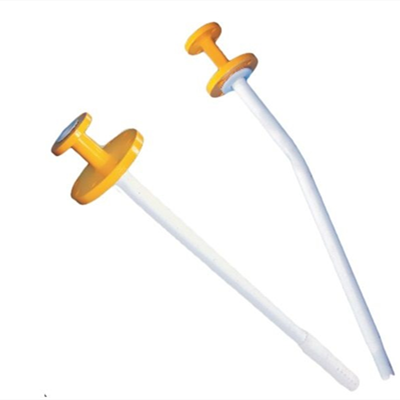

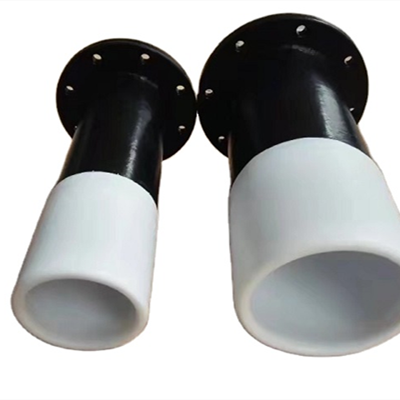

PTFE Lined Dip Pipe

  • Product description: Dip pipes have a wide array of uses. Typically they are used to charge a reactor below the liquid level, to extract samples from the reactor as part of one of our sampling systems, Or to drain liquid
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Avaliable Dip Pipe

* Lined Dip Pipe with Sparger
* Lined Slanted ( Angular ) Dip Pipe
* Lined ' J 'type Dip Pipe
* PTFE solid ' J ' type Dip Pipe
* Solid PTFE & PTFE Lined Feed Pipe for Columns
 Hosing material
* Pipe : ANSI B 36.10, ASTM A 106 Gr. B Schedule 40
* Flanges : ANSI B 16.5 ASA 150 # , ASTM A 105
* Liner : PTFE in accordance with ASTM D 1457
Options
* Flange : Fixed/Rotating,PN 10/16, BS 10,
* Extras : Earthing Studs/Lugs, Vent Extensions
* Liner : PTFE

Design specification
* Flange : As per ANSI B 16.5/B 16.42
* Face to Face : As per ANSI B 16.5 # 150
* Lining Thickness : 3 to 5 mm
TEST & INSPECTION DATA
Resins are conforming to the requirements of ASTM F 1545-97(2003)
* Hydraulic Test : 20 Kg/Cm2 After Lining
* Spark Test : 15 KV D.C After Linin
