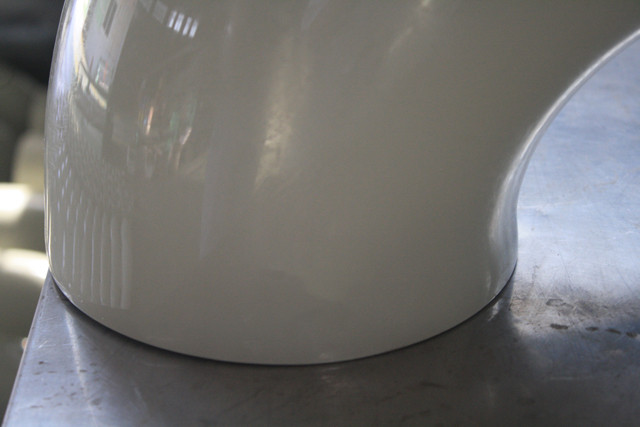

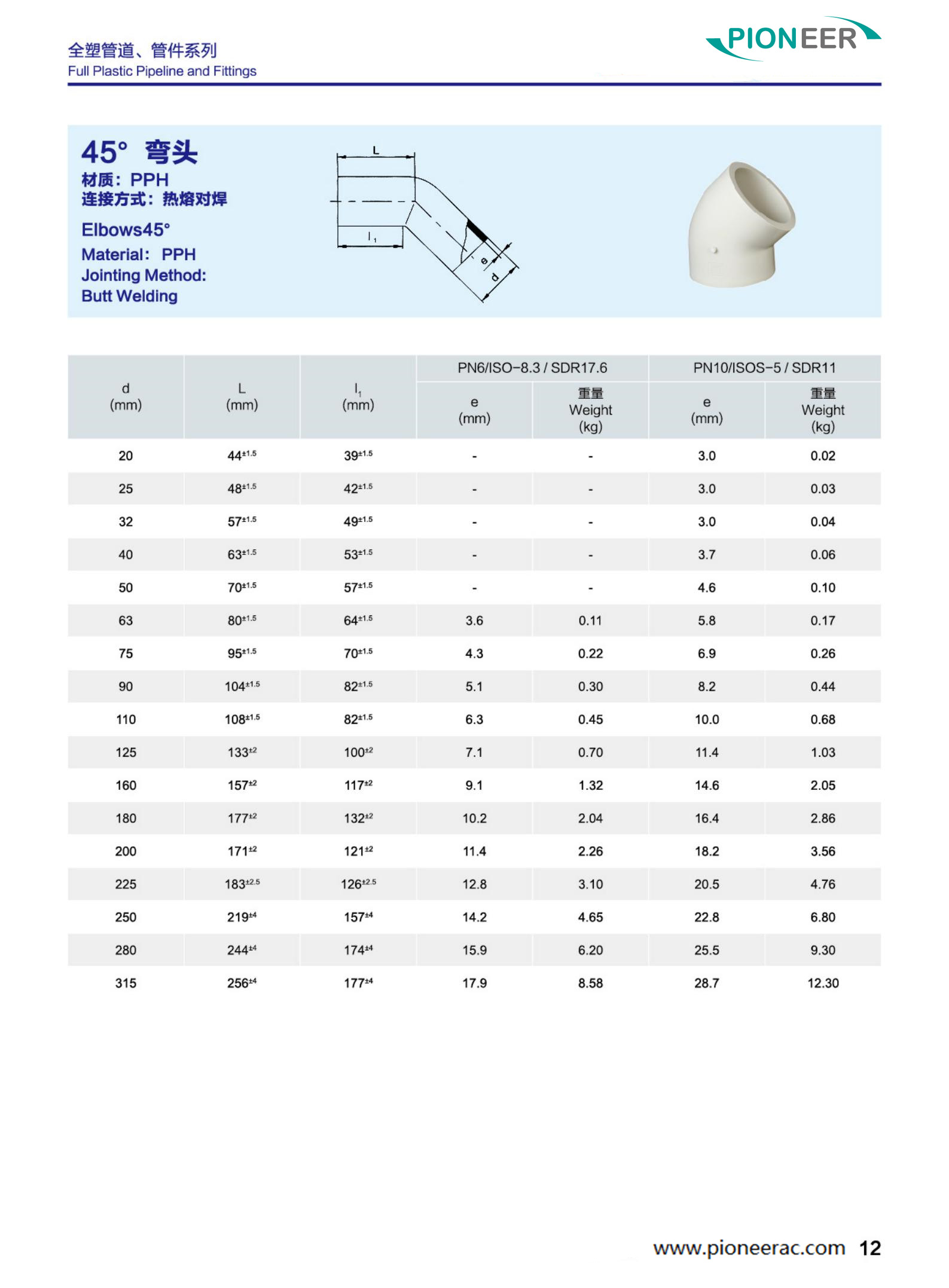

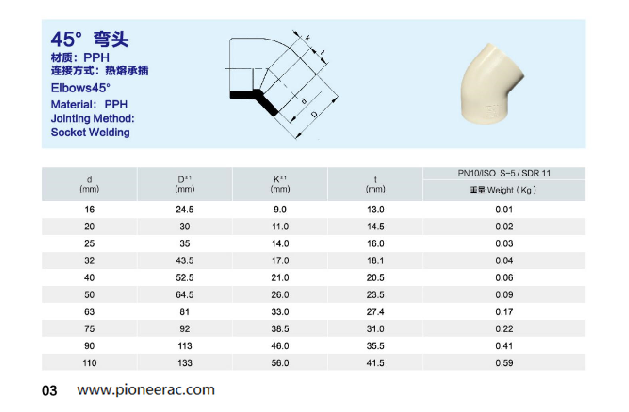

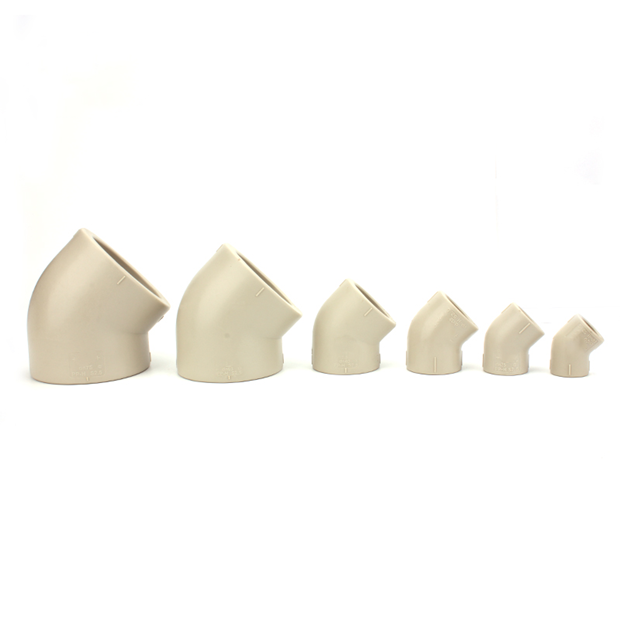

Elbow 45°

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Manufacture and design DIN 8077/8078,ISO
Nominal diameter d16~110,d20-315(mm)
Nominal pressure
PN10(MPa)
Pressure test
DIN, JIS10K ISO
Connection Butt,socket welding

Benefits&Features:

* Good weld ability
* High creep resistance
* Expansive application area
SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

Pressure Rating:
S-5/SDR11, PN10/ISO

Temperature:
*PP-H/FRPP: -20°C ~ 110°C
* PE: -20°C ~ 80°C
*PVDF:-50°C ~ 150°C
*CPVC:0°C ~ 90°C

*CPVC:0°C ~ 60°C
Joining Technology
* Butt, Socket welding
Standard
* DIN 8077/8078
Materials:

* Beta Polypropylene Homopolymer (Beta PP-H)
