PTFE Lined Hose

Product description: PTFE Lined Flexible Hose tube with 304/316stainless steel braided jacket
INQUIRY

PTFE Lined Hose:

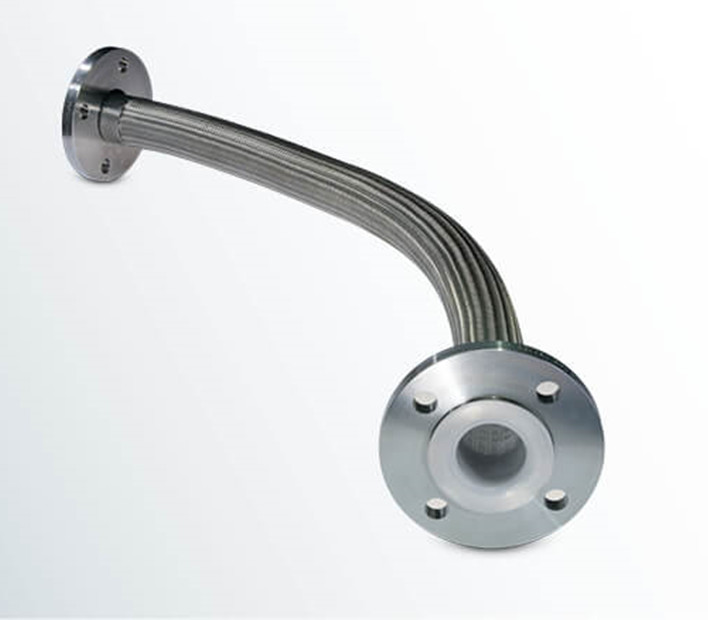

which is braided one layer or multiple layers of wire mesh or wire with sleeve(as per pressure) on the outside of spiral flexible pipe,with joint and flange at both ends.It can absorb vibration and compensate

displacement, especially for large displacement in piping system.

Design standard:
Nominal Diameter: DN20-150 (mm)

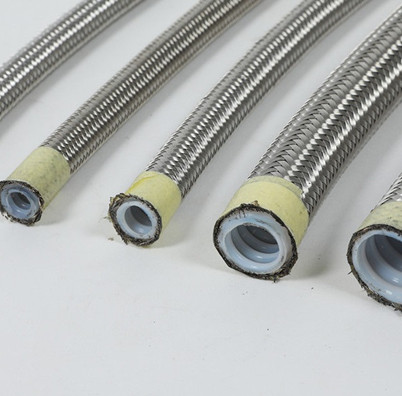

Lining material: Teflon PTFE,PFA,
Lining Thickness
Min. 3.0mm

Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts

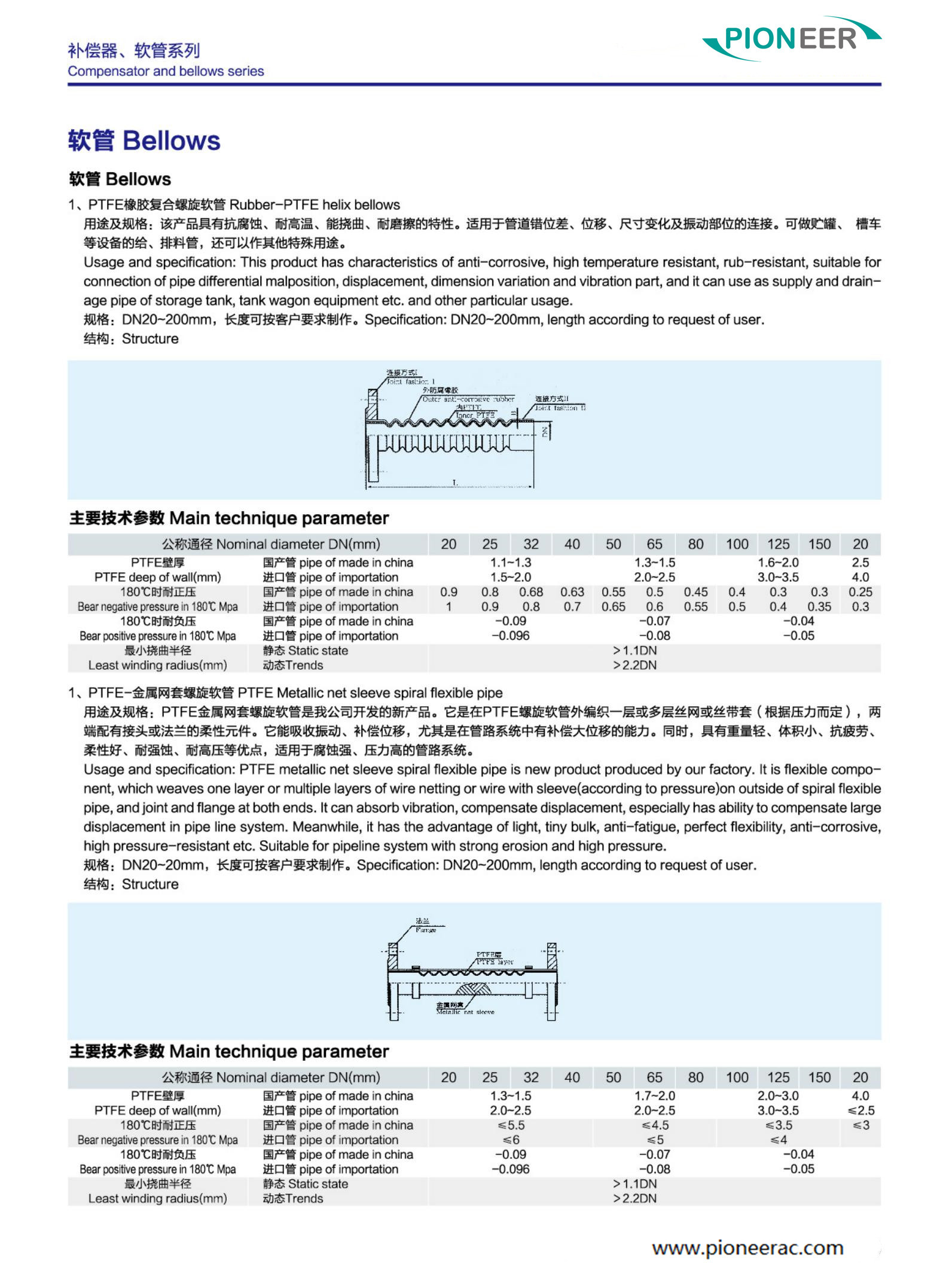

Technical data:
