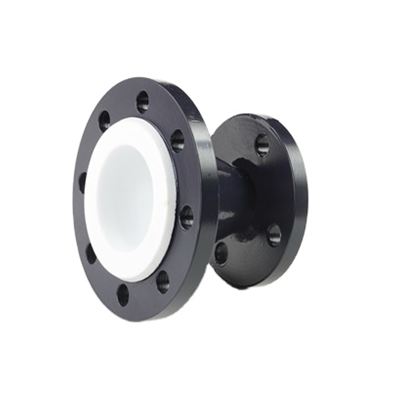

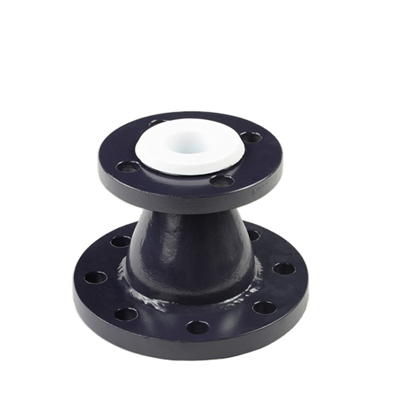

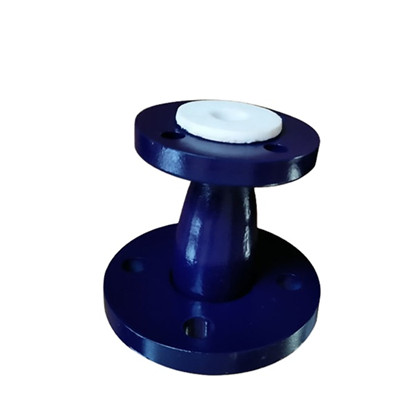

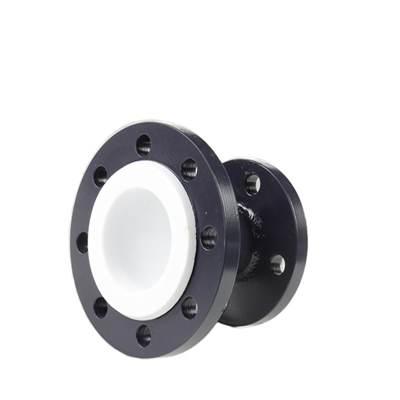

PTFE Lined Reducer

  • Product description: PTFE powder with high performance is used to push (squeeze) into the pipe, the surface is chemically treated, and then it is lined into seamless steel tube (the outer diameter of the liner is slightly
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Structure length
QUL07-09(Enterprise's standard)
Nominal pressure PN≤2.5(MPa) ANSI 150Lb/JIS 10K
Flange size GB/T13927
Pressure test API 598
Connection Flange
Lining material HG/T 21562(Spark test)

Lining Material

We offer lining materials like PTFE/PVDF/FEP(F46)/PFA/PO/PP
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts

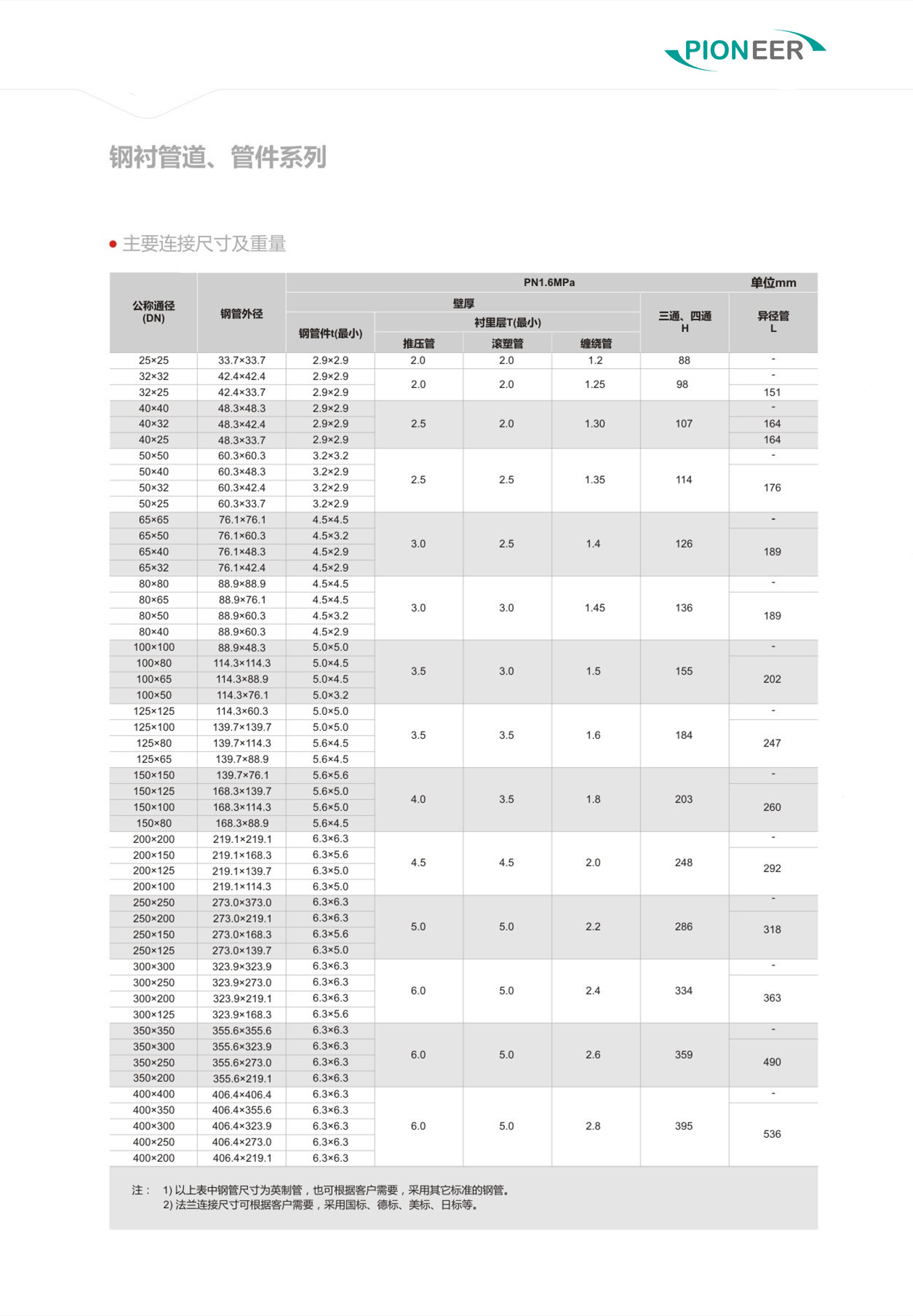

Technical Data:
