Lined Tee

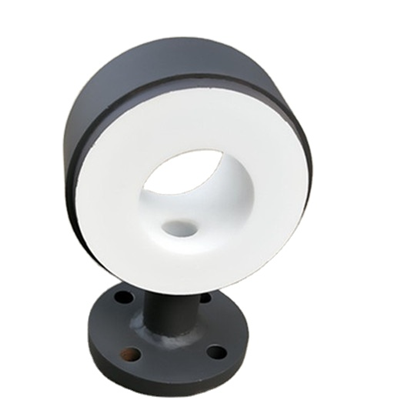

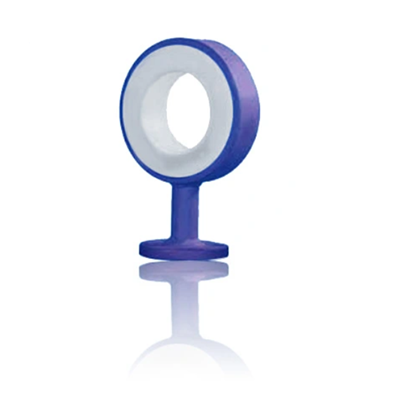

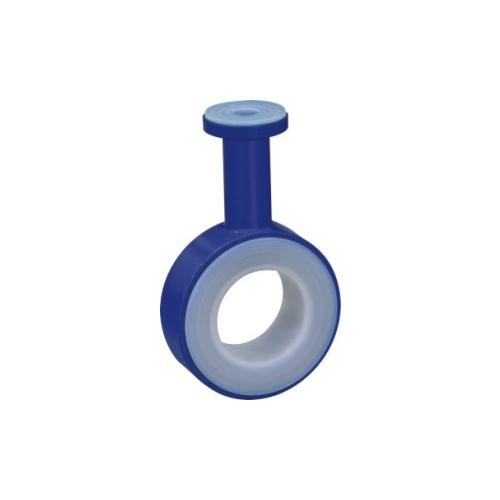

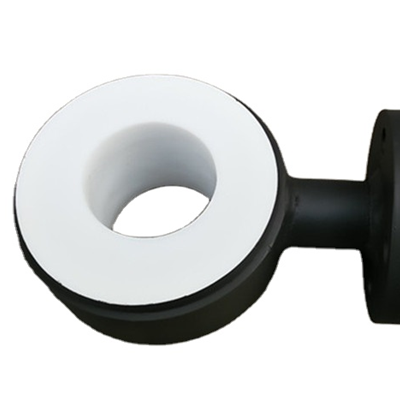

PTFE Lined Instrument Tee
- Product description: These products are designed in compliance with the set industry standards. Their notable features like durability and high tensile strength make them the most sought after products in the market. In o
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
Lining Material
Manufacture and design
ASTM F1545-97
Nominal pressure
PN1.6(MPa) ANSI 150Lb/JIS 10K / DIS
Nominal diameter
NPS 1-24
Flange size
ASME/ANSI 16.5, DIN, JIS
Pressure test
ASTM F1545-97
Lining material
HG/T 21562(Spark test)
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining ThicknessMin. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts
