Ball Valive

  • PVDF Ball Valve
  • PVDF Ball Valve
  • PVDF Ball Valve
  • PVDF Ball Valve
PVDF Ball ValvePVDF Ball ValvePVDF Ball ValvePVDF Ball Valve

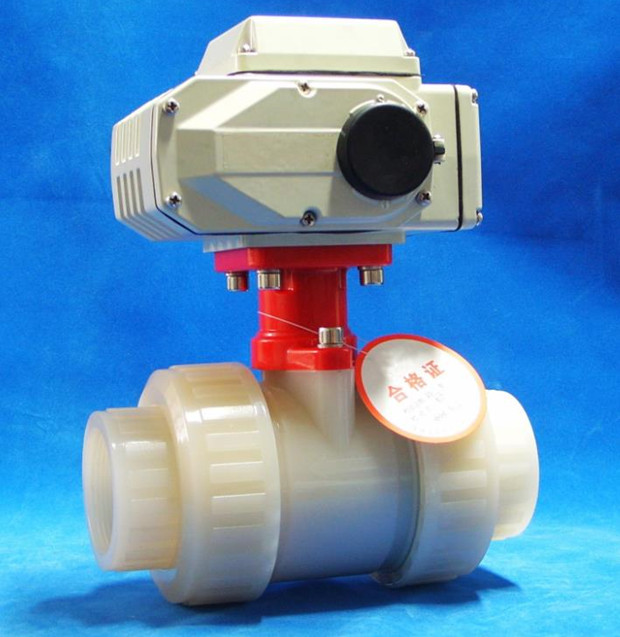

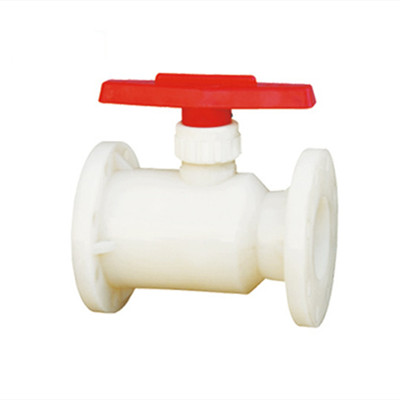

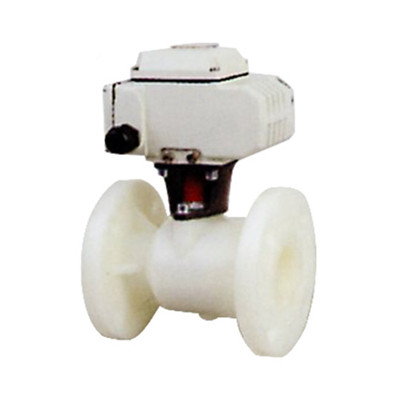

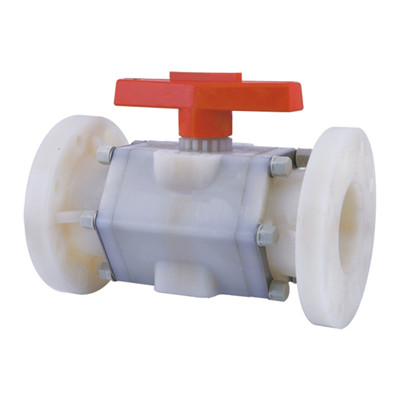

PVDF Ball Valve

  • Product description: Plastic Ball Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,thread or socket Style.suitable for chemical corrossion & temperature resistance.

Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Feature & Benefits:

* Valve body light weight, strong corrosion resistance

* Compact and beautiful appearance
* The body is light and easy to install
* High corrosion resistance, wide application range

SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

Standard followed:

Manufacture and design GB/T 12238(center line)/API609
Nominal diameter DN15~300(mm)
Working pressure PN0.6~1.2MPa
Pressure test
150#, JIS10K,PN10
Flange,thread, socket


PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

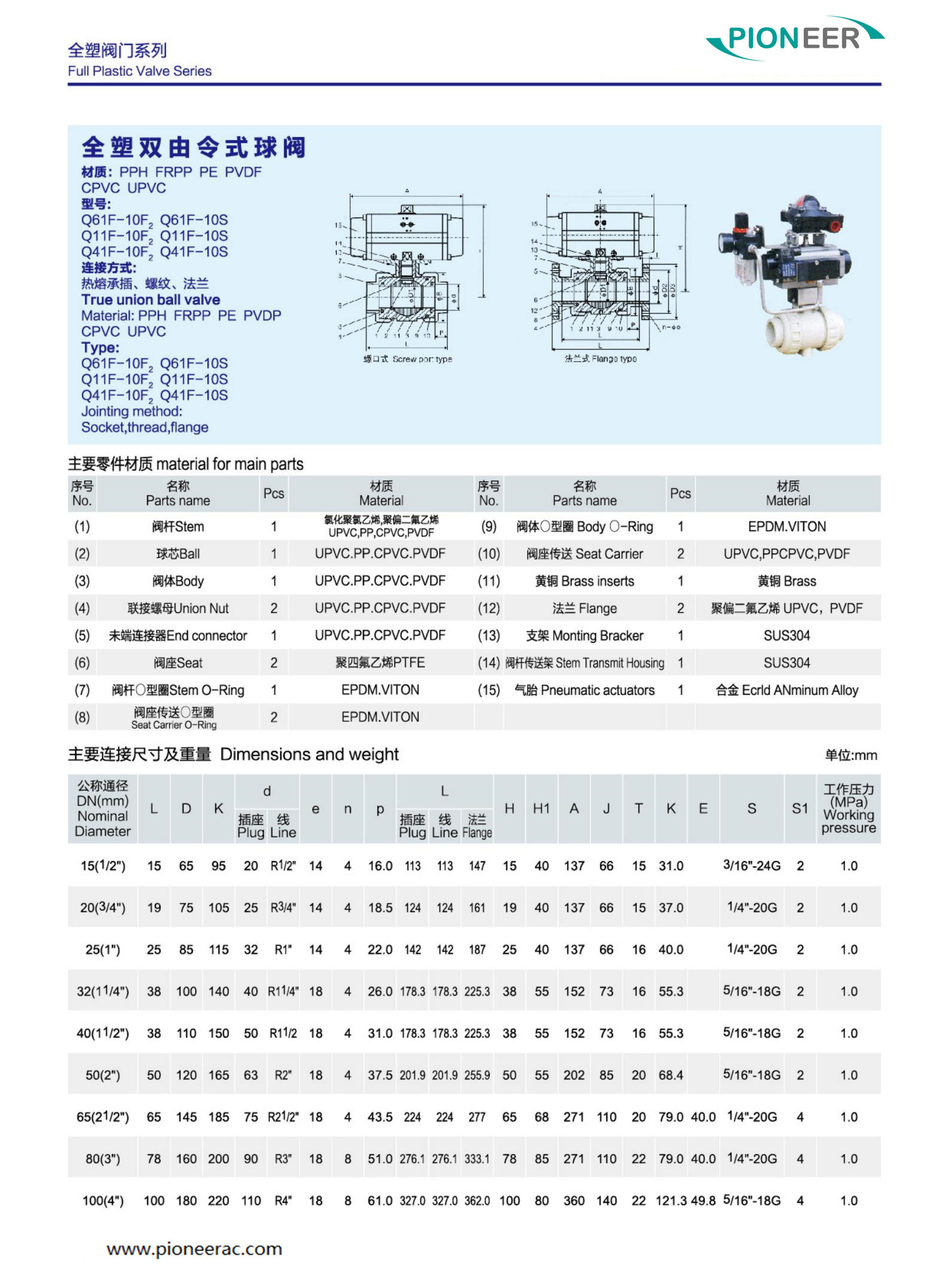

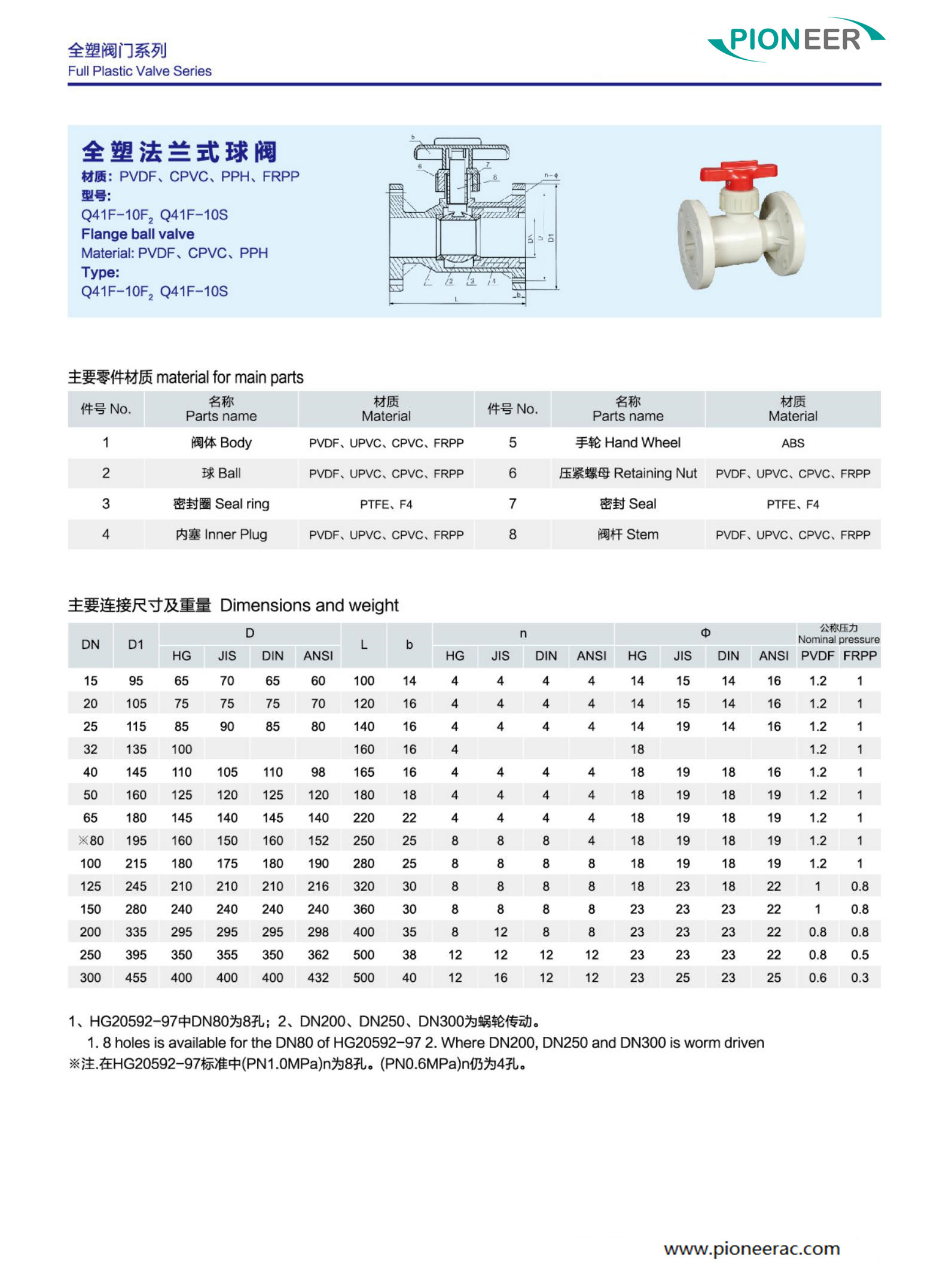

Technical Data:
