Lined Expansion joint

  • PTFE Lined Metal Mesh Expansion Joint
  • PTFE Lined Metal Mesh Expansion Joint
  • PTFE Lined Metal Mesh Expansion Joint
  • PTFE Lined Metal Mesh Expansion Joint
PTFE Lined Metal Mesh Expansion JointPTFE Lined Metal Mesh Expansion JointPTFE Lined Metal Mesh Expansion JointPTFE Lined Metal Mesh Expansion Joint

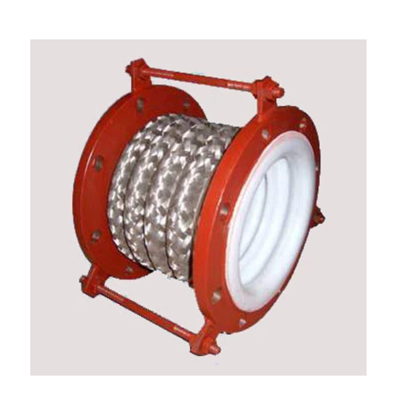

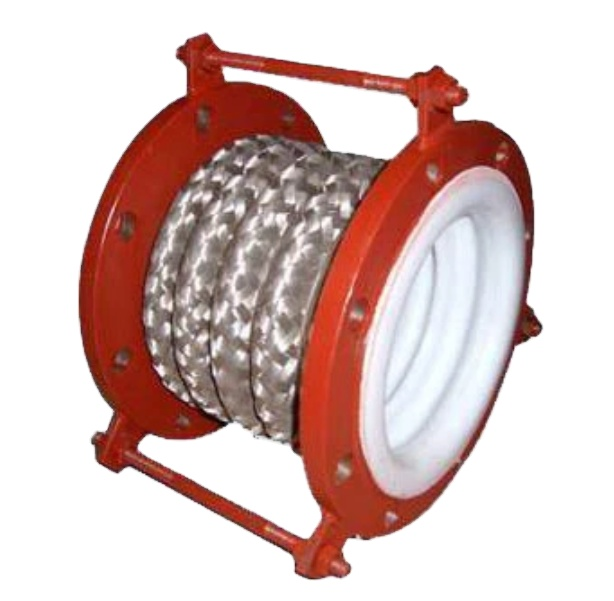

PTFE Lined Metal Mesh Expansion Joint

  • Product description: Product description: Metal bellow expansion joint is one flexible, thin-walled, and transverse corrugated pipe expansion joint. It is composed of stainless steel bellow body, flange, limit rod, and li
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Manufacture and design HG/T 3985, GB/T 15700
Nominal pressure PN10(MPa) ANSI 150Lb/JIS 10K
Nominal pressure DN25-DN2000
Flange size GB/T9113.1/ASME B16.5/JIS B2220/JB/T79
Pressure test GB/T 15700
Lining material HG/T 21562(Spark test)

Lining Material

We offer lining materials like PTFE/PVDF/FEP(F46)/PFA/PO/PP
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts

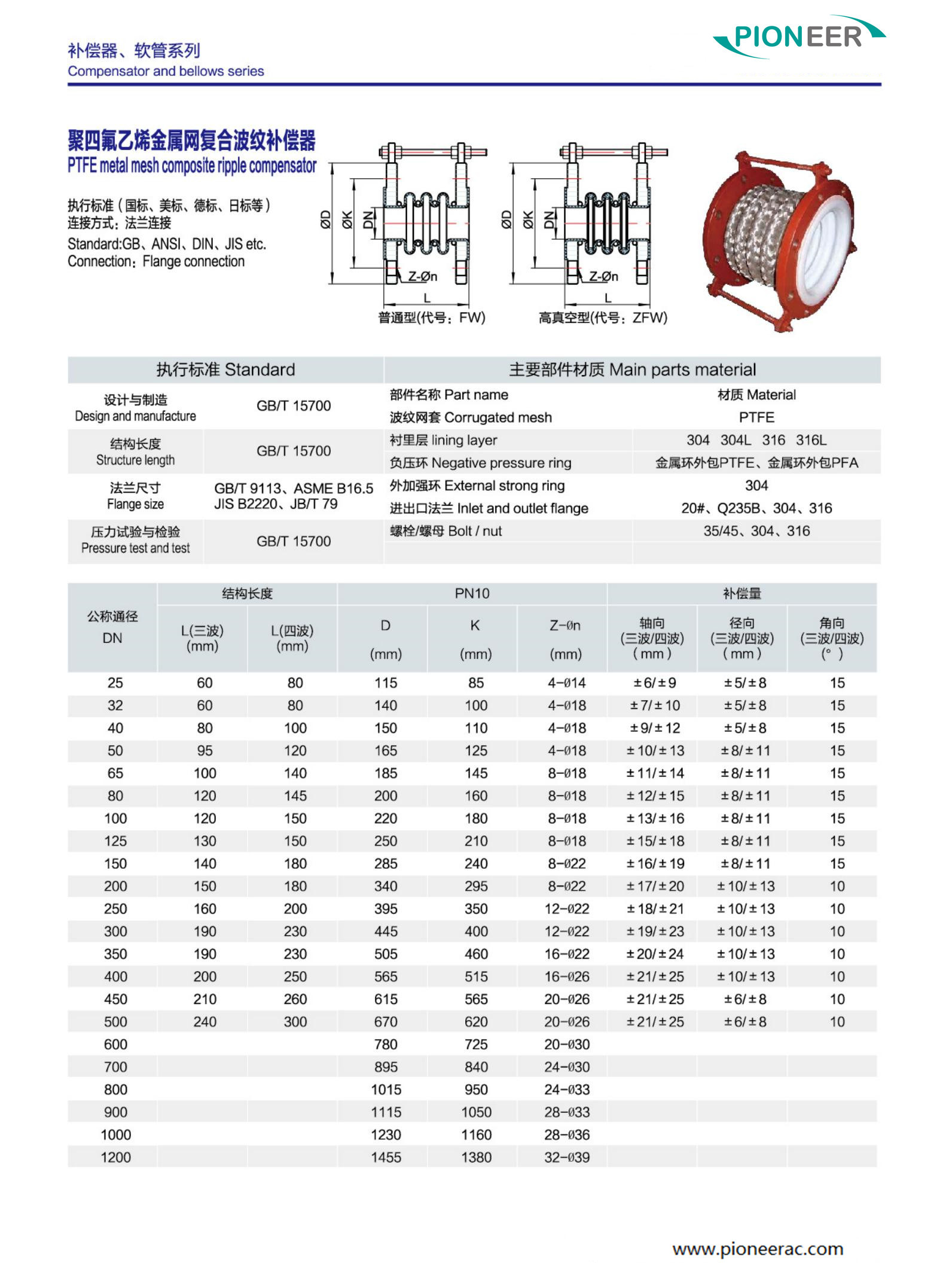

Technical Data:
