Lined sight glass

  • PTFE Lined Sight Glass
  • PTFE Lined Sight Glass
  • PTFE Lined Sight Glass
  • PTFE Lined Sight Glass
PTFE Lined Sight GlassPTFE Lined Sight GlassPTFE Lined Sight GlassPTFE Lined Sight Glass

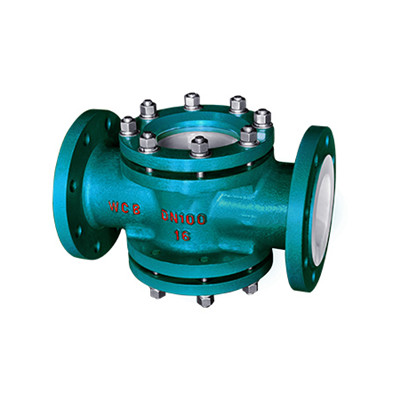

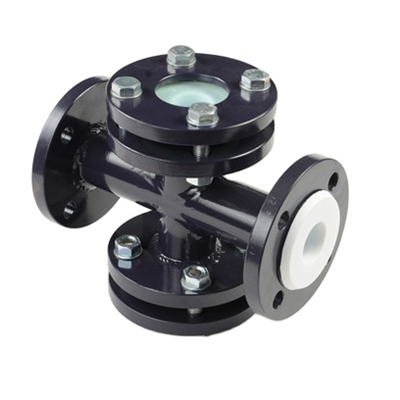

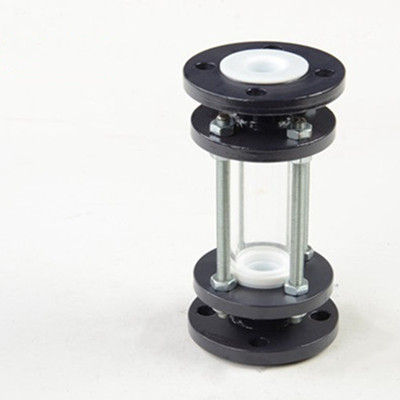

PTFE Lined Sight Glass

  • Product description: It is widely used in the pipelines of petroleum, chemical industry, medicine, food and other industrial production units. It can observe the flow of liquid, gas, steam, lubricating oil and other media
  • INQUIRY


Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture HG/T 21622, HG/T 21620
Nominal pressure PN10(MPa) ANSI 150Lb/JIS 10K
Nominal pressure DN25-DN200
Flange size GB/T9113.1/ASME B16.5/JIS B2220/JB/T79
Pressure test HG/T 21622, HG/T 21620
Lining material HG/T 21562(Spark test)


Lining Material

We offer lining materials like PTFE/PVDF/FEP(F46)/PFA/PO/PP
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts

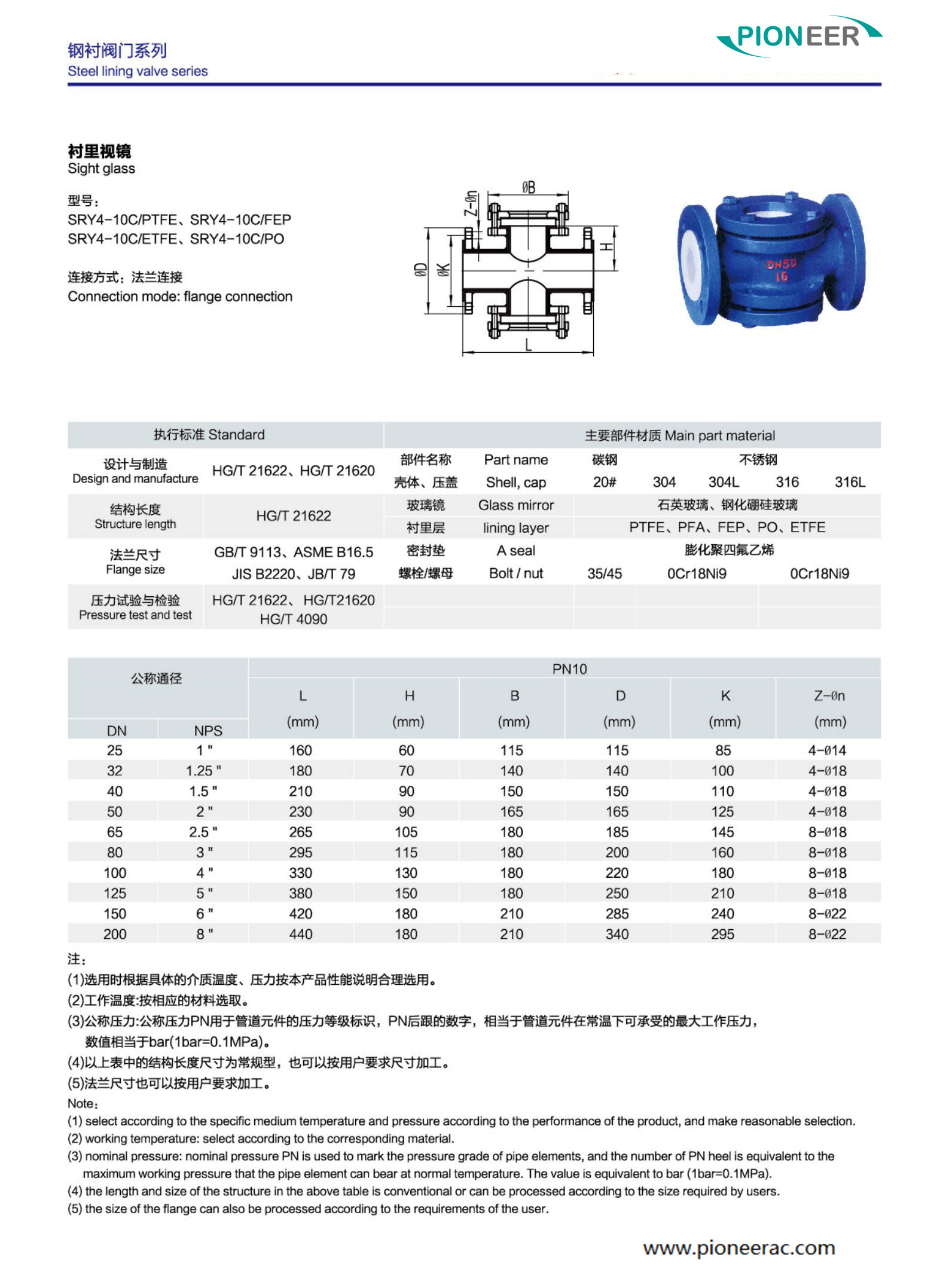

Technical Data:
