Diaphragm Valve

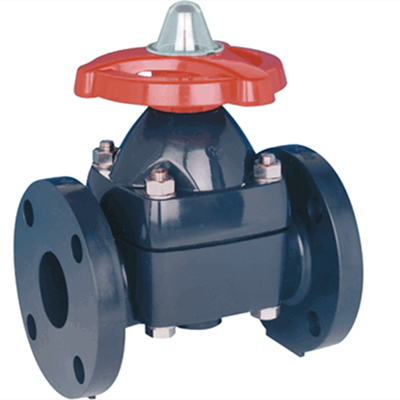

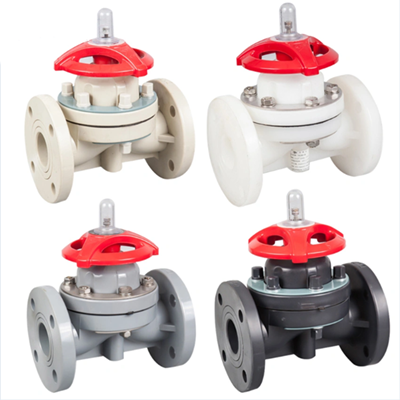

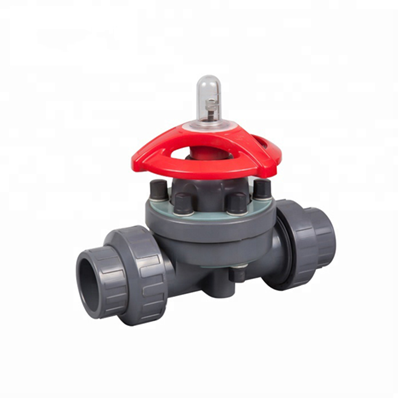

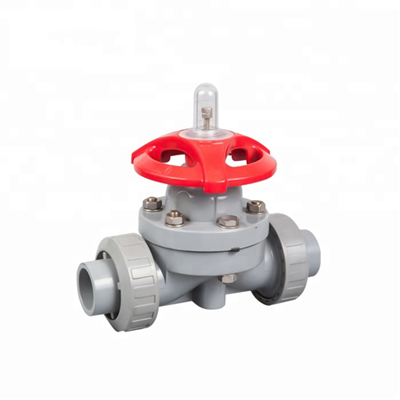

PVC Diaphragm Valve
- Product description: Product description: Plastic Diaphragm Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,Wafer or Lug Style.suitable for chemical corrossion & temperature resistance.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
* Valve body light weight, strong corrosion resistance
* Compact and beautiful appearance* The body is light and easy to install
* High corrosion resistance, wide application range
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
Standard followed:
| Manufacture and design | GB/T 12238(center line)/API609 |
| Nominal diameter |
DN15-300(mm) |
| Working pressure | PN0.5-1.0MPa |
|
Pressure test |
DIN, JIS10K,PN10 |
|
Connection |
Socket,flange |
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C

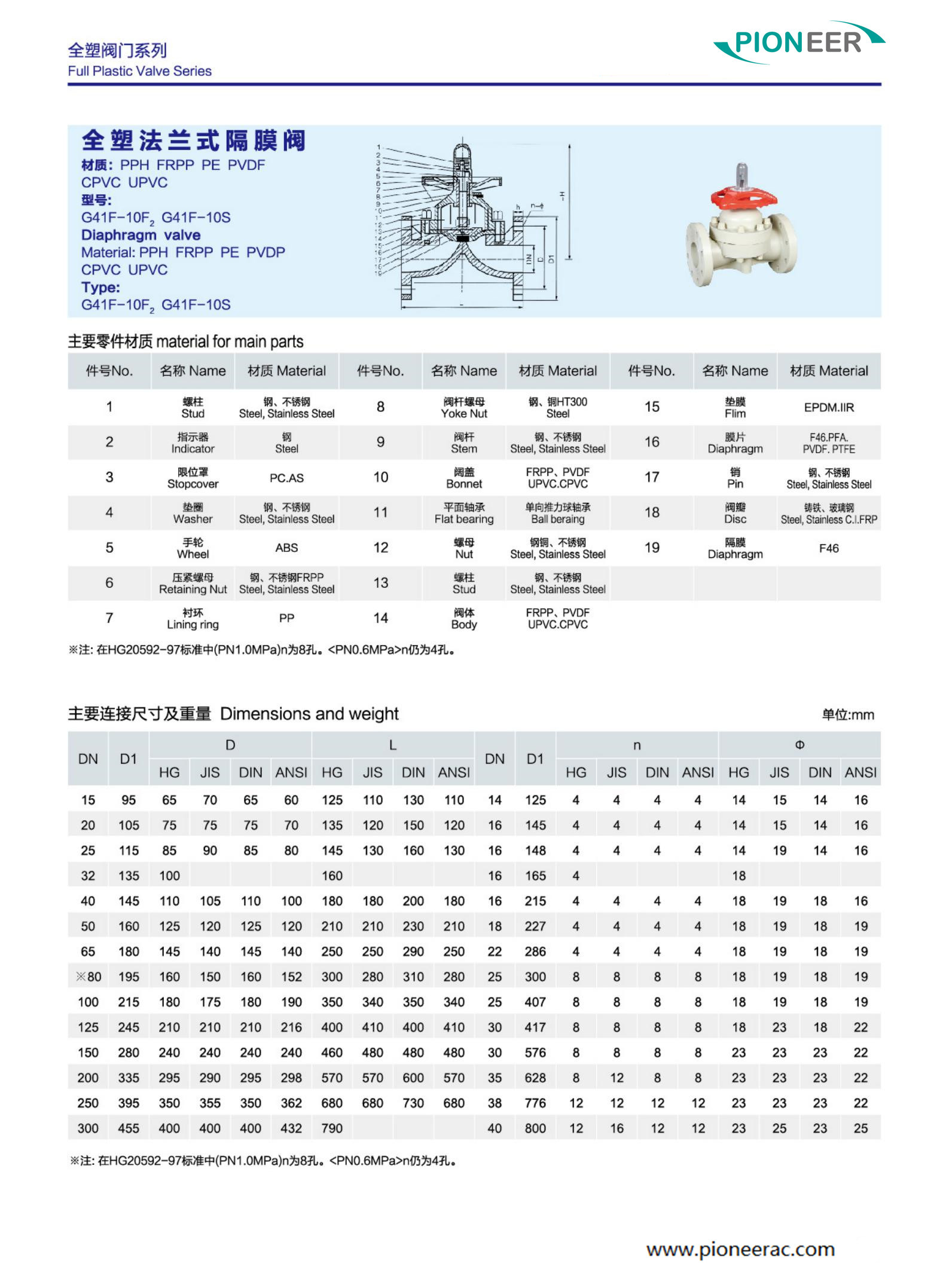

Techincal Data:
