Check Valve

  • PVC Check Valve
  • PVC Check Valve
  • PVC Check Valve
  • PVC Check Valve
PVC Check ValvePVC Check ValvePVC Check ValvePVC Check Valve

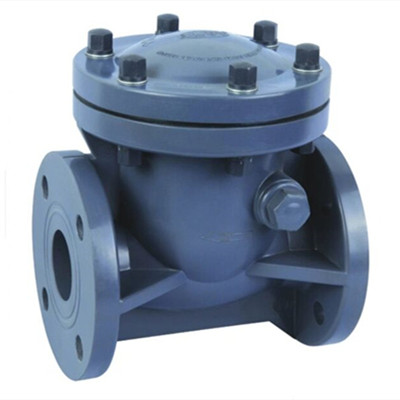

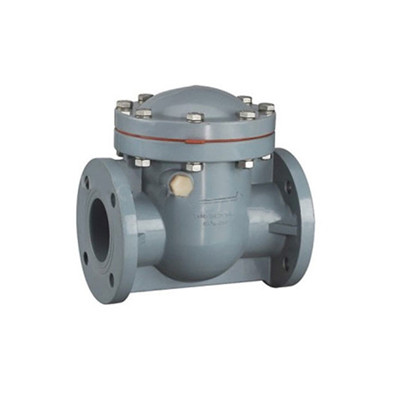

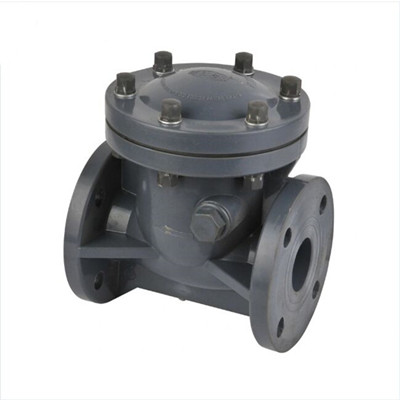

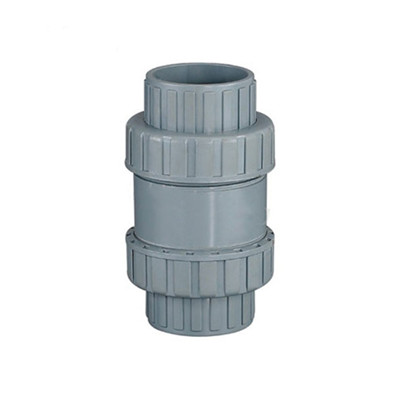

PVC Check Valve

  • Product description: Plastic Check Valve,High Performance,Tight Shut Off,Bi-directional,Flanged,Wafer or Lug Style.suitable for chemical corrossion & temperature resistance.
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Feature & Benefits:

* Valve body light weight, strong corrosion resistance

* Compact and beautiful appearance
* The body is light and easy to install
* High corrosion resistance, wide application range

* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products


Standard followed:

Manufacture and design GB/T 12238(center line)/API609
Nominal diameter DN25-250(mm)
Working pressure PN0.5-1.0MPa
Pressure test
150#, JIS10K,PN10
Connection
Flange,wafer

Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

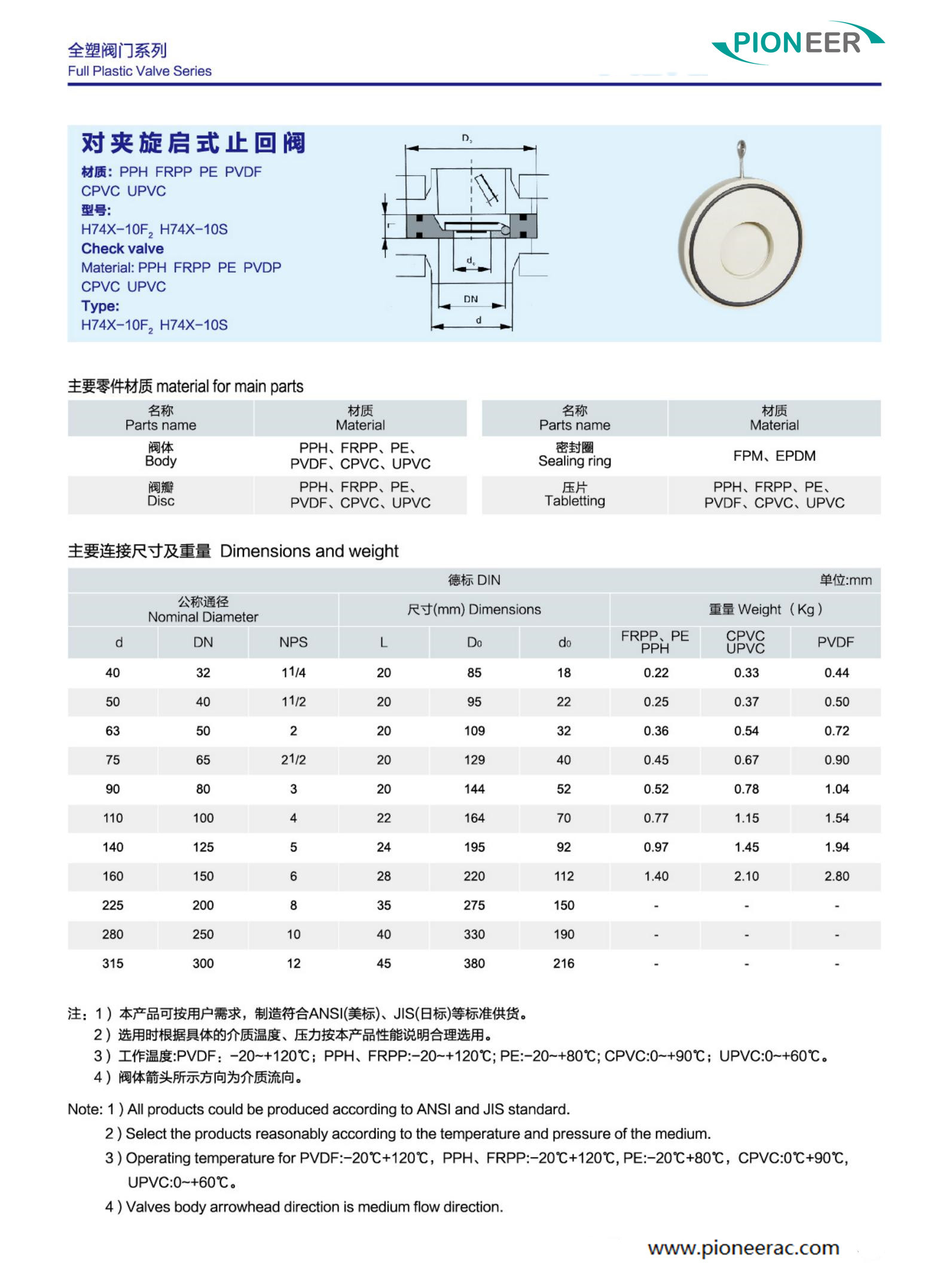

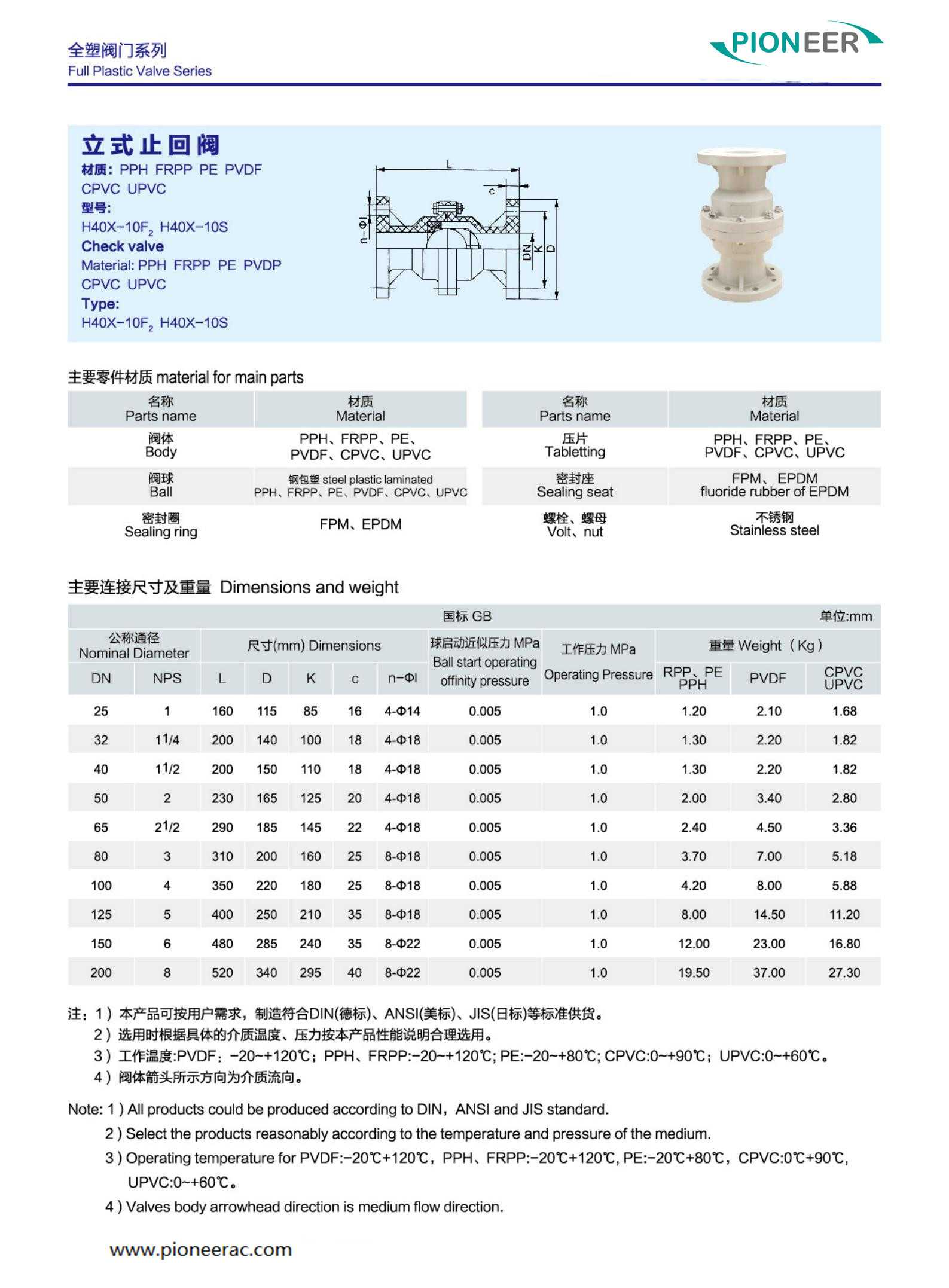

Techincal Data:
