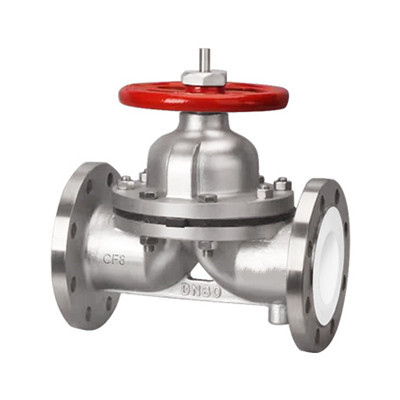

G41F4-16P Stainless Steel Diaphragm Valve

  • Product description: Diaphragm valve is a kind of special form, which has the function of truncation valve, the opening and closing by steel disc and soft material (rubber and fluorine plastic compound) of diaphragm and t
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
GB/T12239
Structure length
HG/T 3704
Nominal Diameter
DN15~300mm
Nominal pressure
PN0.6~1.6(MPa)
Flange size
HG/T20592
Pressure test
GB/T 13927
Driving mode

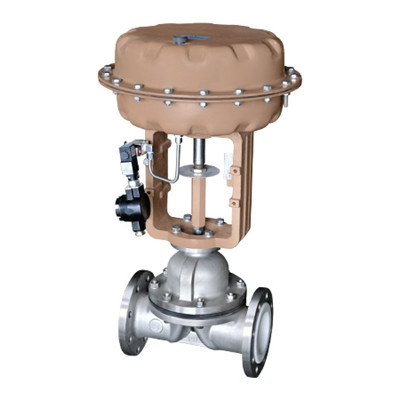

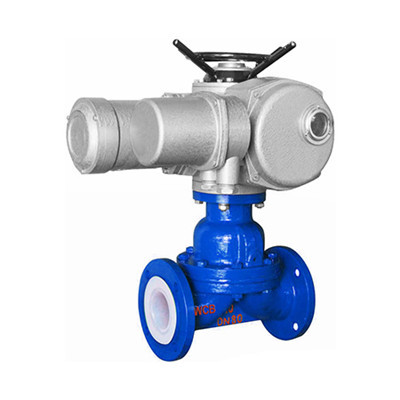

manual,electrical,pneumatic

Lining Material:

We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M

Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

Technical Data:
