Globe Valve

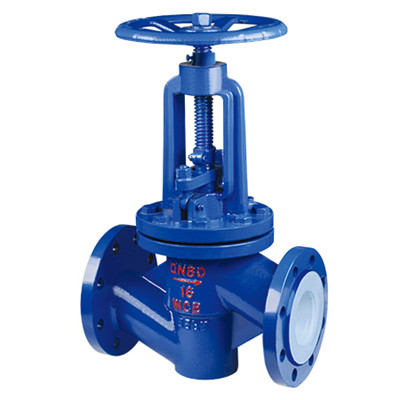

J41F46-16C Globe Valve
- Product description: Globe valve refers to the closing piece (disc) driven by the stem and along the center line of the seat of the valve movement, in the pipeline is mainly used to connect or cut off the medium in the pi
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Standard followed:
|
Design and manufacture |
GB/T12233/GB/T12235 |
|
Structure length |
GB/T 12221(long seriese)/GB/T3704 |
|
Nominal Diameter |
DN15~DN350(mm) |
|
Nominal pressure |
PN0.6~1.6(MPa) |
|
Flange size |
HG/T20592 |
|
Pressure test |
GB/T 13927 |
|
Driving mode |
manual,electric, pneumatic |
We offer lining materials like PCTFE(F₃)/FEP(F46)/PFA/PO/PTFEF4
Temperature:
PTFE Max : 260°C
FEP Max : 204°C
PFA Max : 260°C
PVDF Max : 140°C
PO Max : 80°C
PE Max : 70°C
PP Max : 120°C
Lining Material:
We offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Min. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts
