Q41-150Lb ANSI Standard Ball Valve

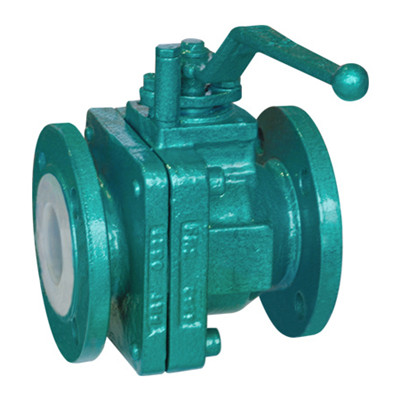

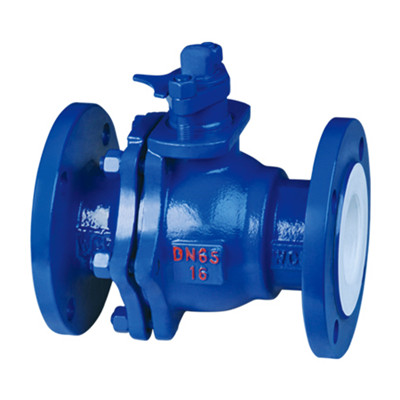

  • Product description: Fluorine Polymer Lined Ball Valve-PTFE Lined Ball Valves are generally made from Grey Cast Iron,Cast Ductile Iron Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted
  • INQUIRY

Industries:

Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
API608 6D
Structure length
ASME B16.10
Nominal Diameter
DN15~DN350(mm)
Nominal pressure
PN0.6~1.6MPa
Flange size
ASME B16.5
Pressure test
API 598
Driving mode

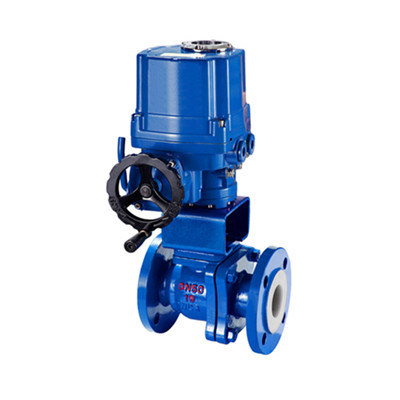

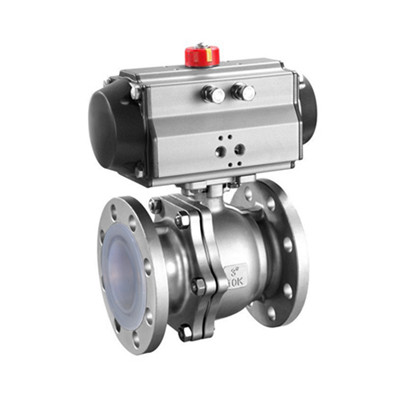

manual, pneumatic, electric, worm gear
Lining Specifications:
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

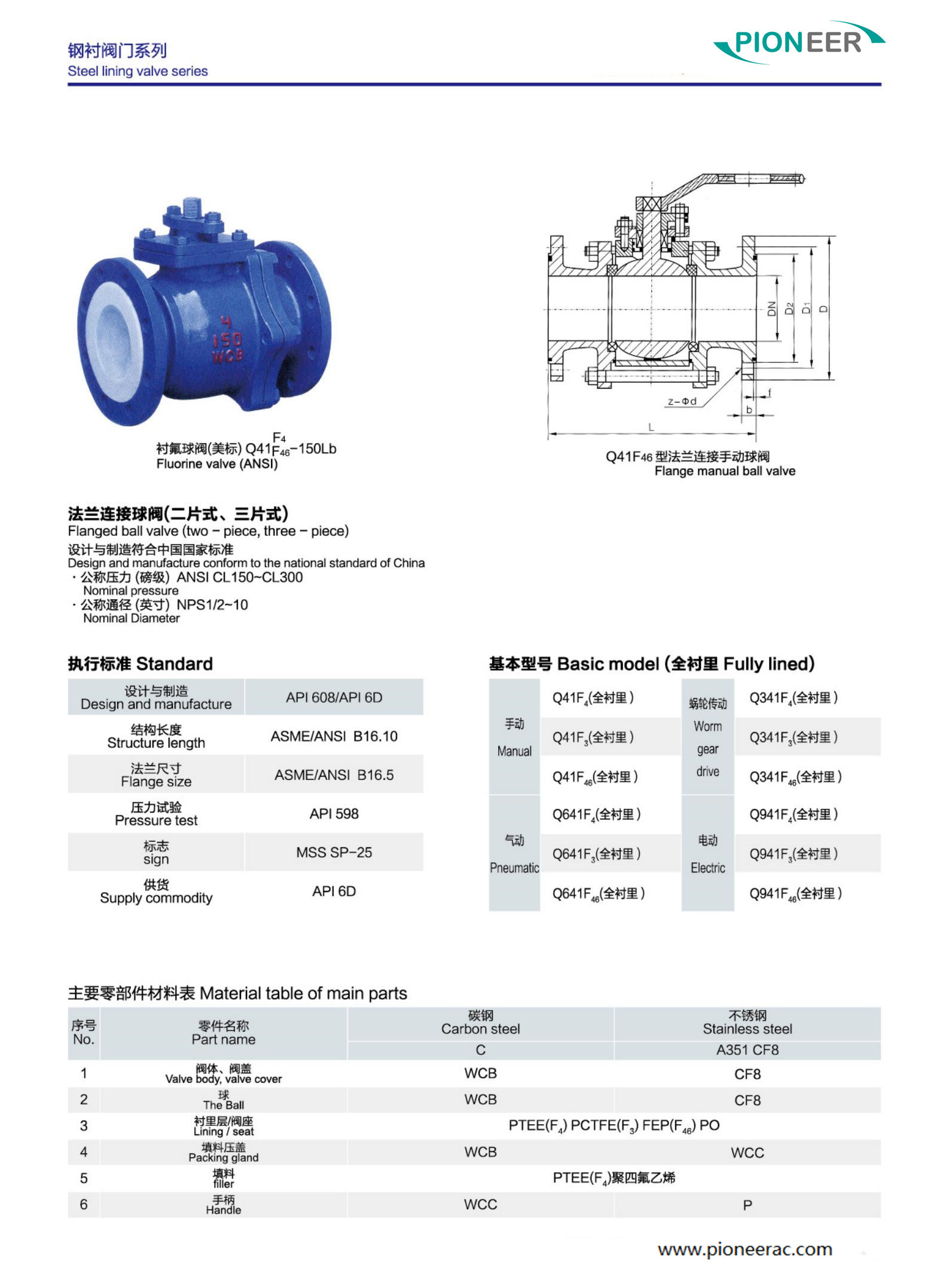

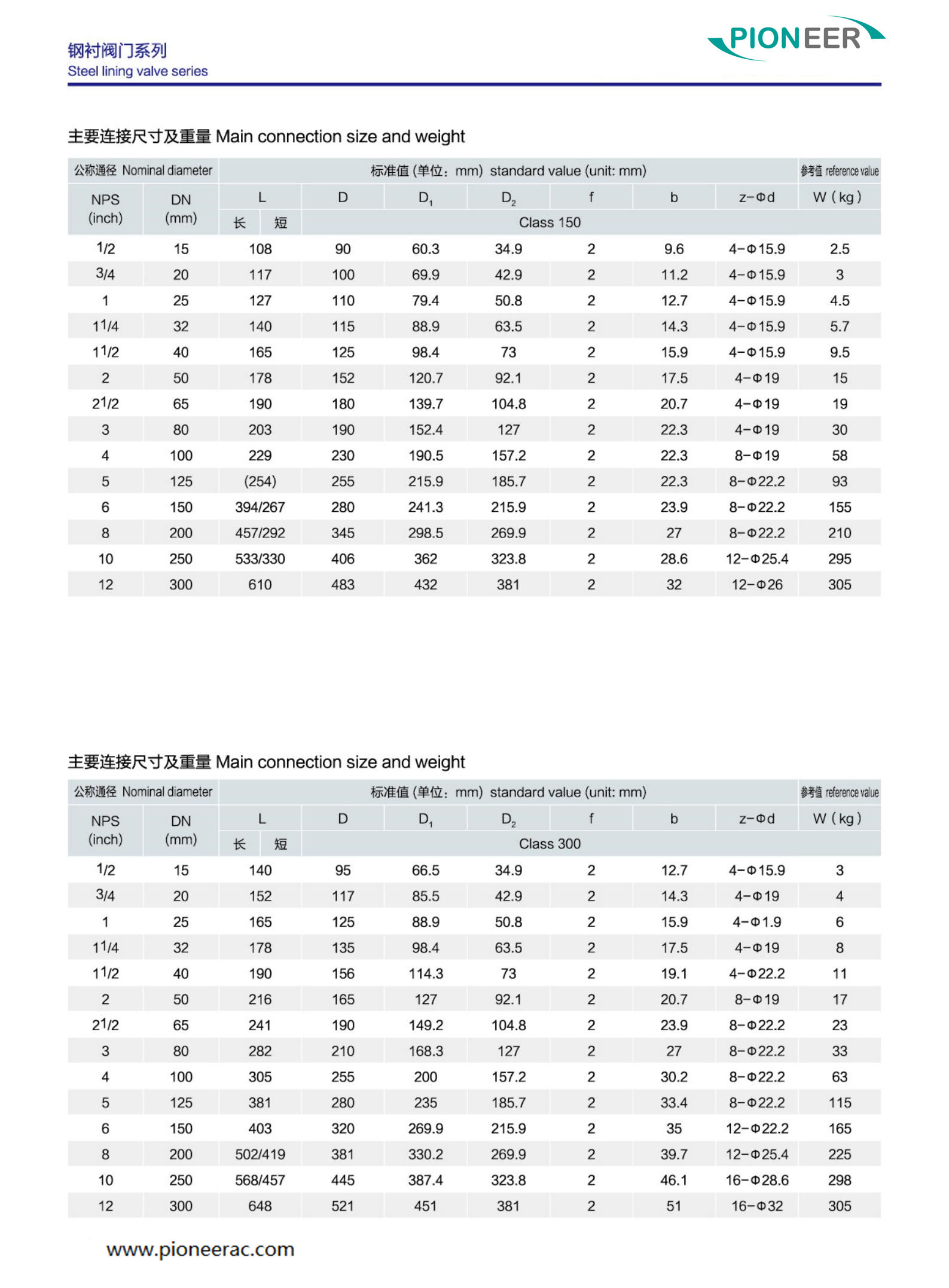

Technical Data:
