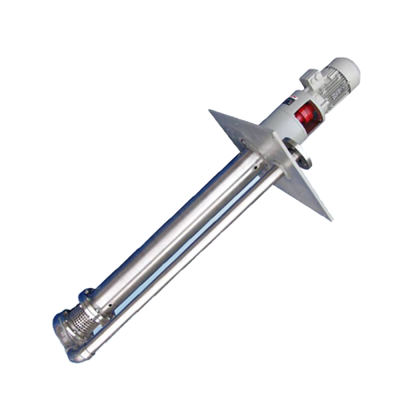

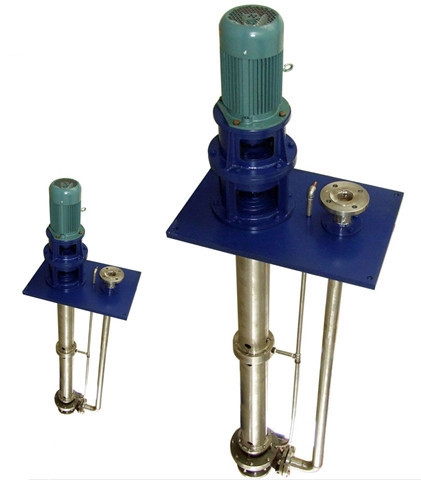

HY Stainless Steel Vertical Pump

HY series long-shaft submersible pump belongs to a vertical single-stage, sigle-suction centrifugal pump, is a self-designed and developed new type and energy environmental protection product,is used to convey the neutral or corrosive clean liquid,especially suitable for sewage treatment,cement factory, electricity works, petrochemical industry etc.

-IS02858 end-suction centrifugal pumps(rating 16 bar)-designation, norminal duty point and dimensions.

-GB5656-94 technical specifications for single-stage,single-suction chemical centrifugal pumps.

-GB/T3214-91 methods for measurement of capacity of pump.

-GB/T3216-2005 rotodynamic pumps-Hydraulic performance acceptance tests.

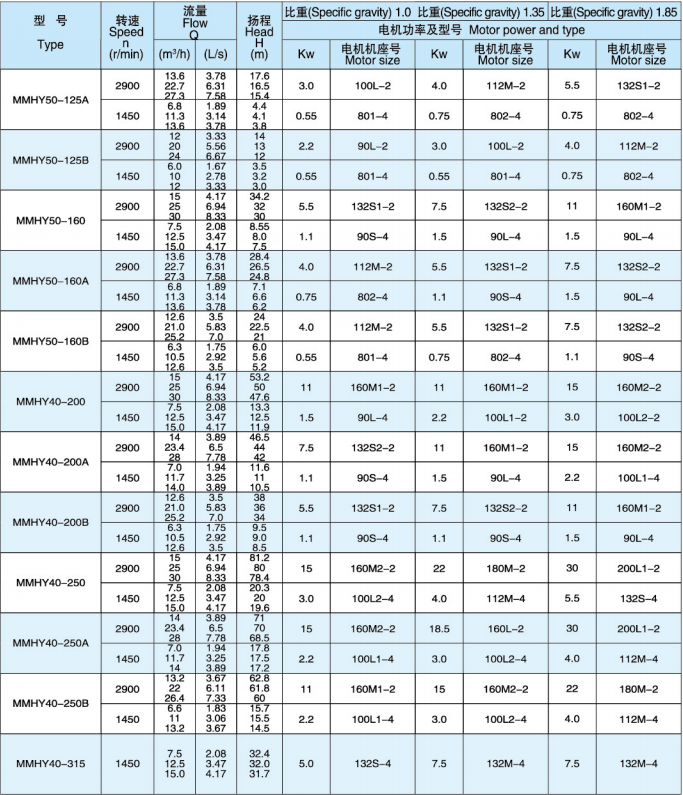

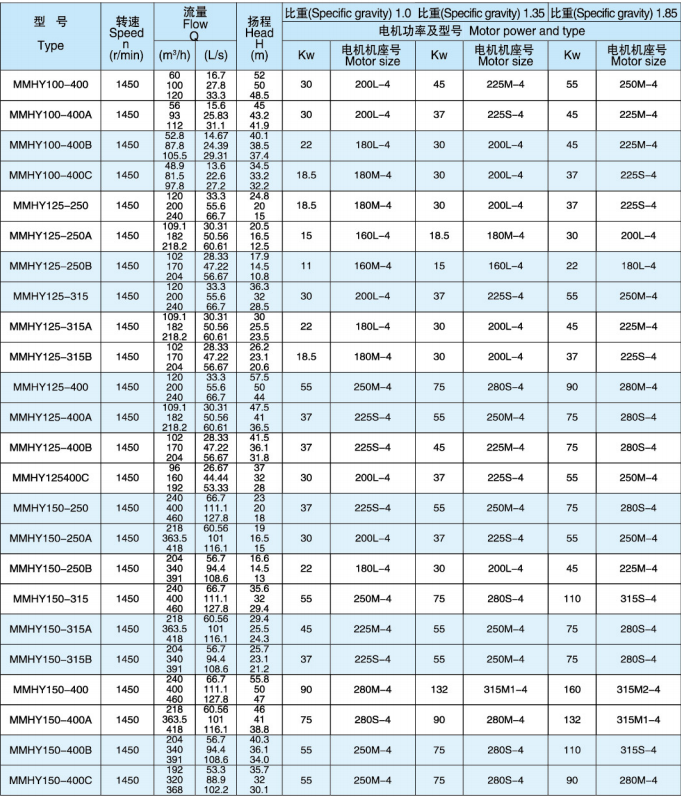

MMHY series long-shaft sumbmersible pump mainly executes the designation norminal duty point in IS02858 standard.
