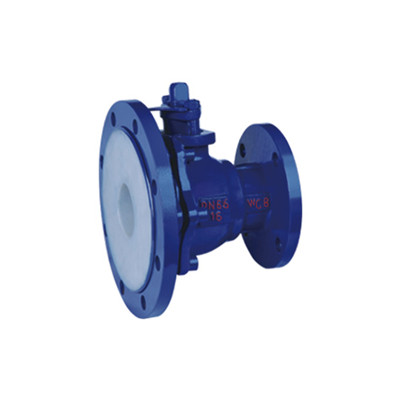

FQ41F46-16C Discharge Ball Valve

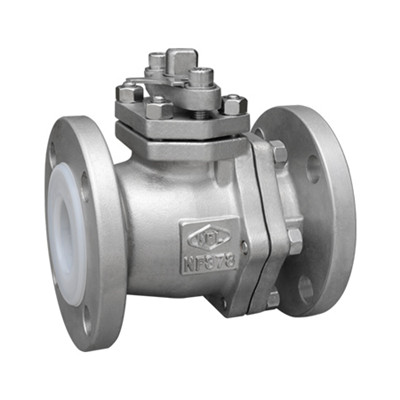

  • Product description: Fluorine Polymer Lined Ball Valve-PTFE Lined Ball Valves are generally made from Grey Cast Iron,Cast Ductile Iron Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted
  • INQUIRY

Industries:

Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
GB/T 12237
Structure length
(Enterprise standard)Q/NFL03-2013
Nominal Diameter
DN15-DN150(mm)
Nominal pressure
PN0.6~1.6(MPa)
Flange size
HG/T20592
Pressure test
GB/T 13927
Driving mode
manual, pneumatic, electric, worm gear
Lining Specifications:
Lining Material
We offer lining materials like PTFE,FEP,PFA,PVDF,PE,PO,PP.
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

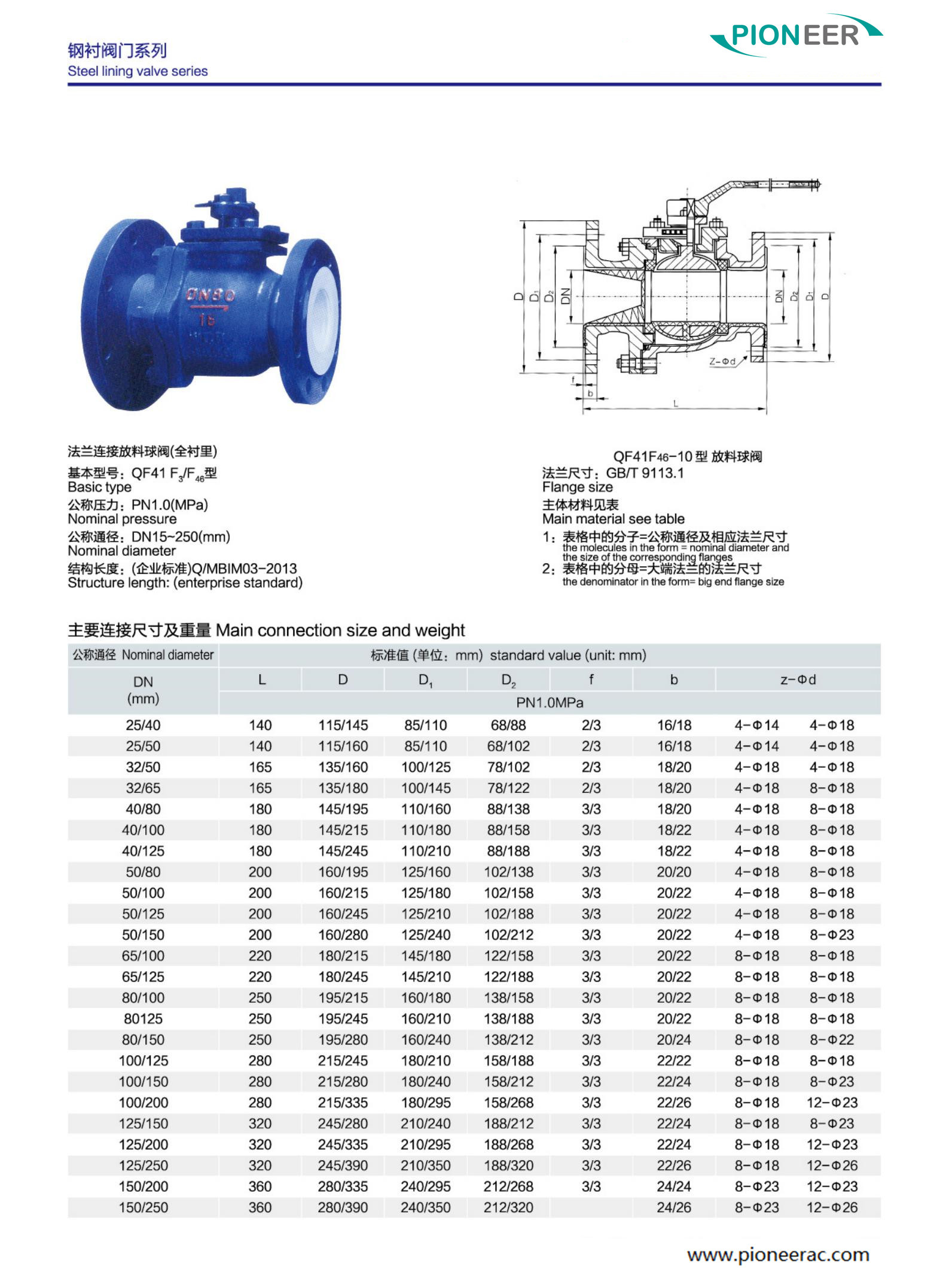

Technical Data:
