Globe Valve

  • HG5-89-2 Downward Discharge Globe Valve
  • HG5-89-2 Downward Discharge Globe Valve
  • HG5-89-2 Downward Discharge Globe Valve
  • HG5-89-2 Downward Discharge Globe Valve
HG5-89-2 Downward Discharge Globe ValveHG5-89-2 Downward Discharge Globe ValveHG5-89-2 Downward Discharge Globe ValveHG5-89-2 Downward Discharge Globe Valve

HG5-89-2 Downward Discharge Globe Valve

  • Product description: Diaphragm valve is a kind of special form, which has the function of truncation valve, the opening and closing by steel disc and soft material (rubber and fluorine plastic compound) of diaphragm and t
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Design and manufacture
GB/T12233/GB/T12235
Structure length
GB/T 12221(long seriese)/GB/T3704
Nominal Diameter
DN15~DN300(mm)
Nominal pressure
PN0.6~1.6(MPa)
Flange size
HG/T20592
Pressure test
GB/T 13927
Driving mode
manual,electric, pneumatic
Lining MaterialWe offer lining materials like PCTFE(F₃)//FEP(F46)/PFA/PO/CF3M
Temperature:

PTFE Max : 260°C

FEP Max : 204°C

PFA Max : 260°C

PVDF Max : 140°C

PO Max : 80°C

PE Max : 70°C

PP Max : 120°C

Lining Thickness
Min. 3.0mm
Spark Test

Body liners & all wet parts are tested for spark at 15,000 Volts.

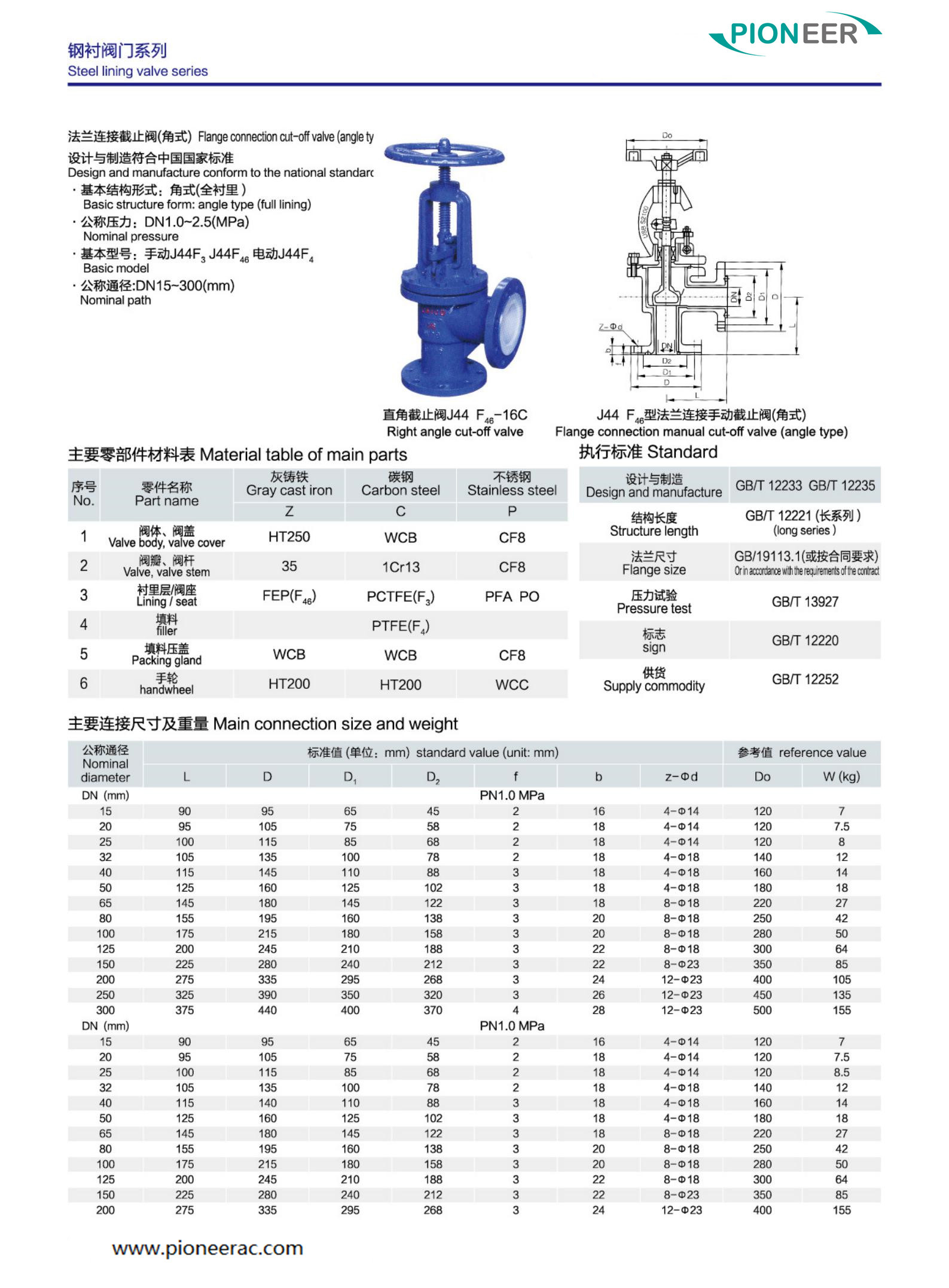

Technical Data:
