PPH Fittings

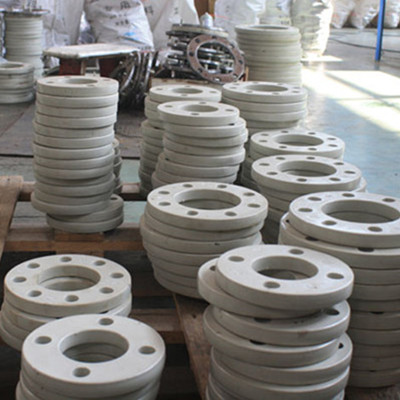

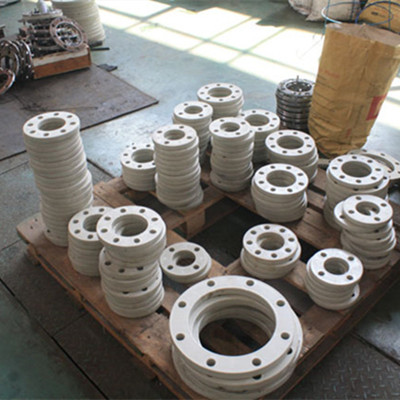

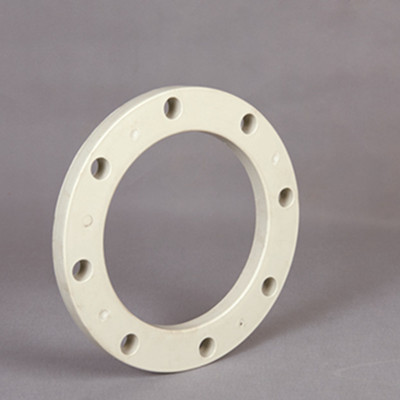

PP-H Backing Ring

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Standard followed:

Benefits&Features：

* Good weld ability
* High creep resistance
* Expansive application area
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

Pressure Rating:
S-5/SDR11, PN10/ISO /PN3.2/ISO-16 /SDR33

Temperature:
*PP-H/FRPP: -20°C ~ 110°C

* PE: -20°C ~ 80°C

*PVDF:-50°C ~ 150°C

*CPVC:0°C ~ 90°C

*CPVC:0°C ~ 60°C
Joining Technology
* Flange
Standard
* DIN 8077/8078
Materials:

* Beta Polypropylene Homopolymer (Beta PP-H)
