Vacuum Pump

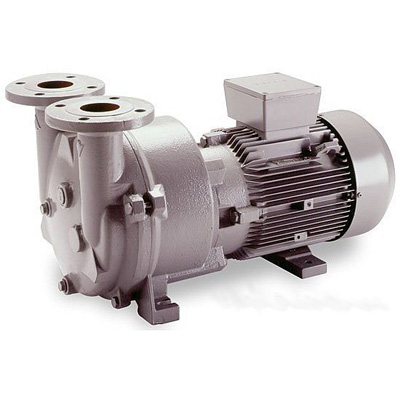

Liquid Ring vacuum pump
- Material;Cast Iron/Stainless Steel/Titanium
- Limited Vacuum:-0.098Mpa
- Product description: 2BV Series Liquid Ring Vacuum Pump
Introduction:
1. 2BV new type high quality high performance high limited vacuum liquid ring air vacuum pump water ring vacuum pump used in sucking gas and water vapor, inspiratory pressure can reach 33mbar absolute pressure.
2. When the water ring vacuum pumps in inspiratory pressure limits of working liquid vacuum (saturated steam pressure) for a long time, should work under cavitation protection tube connection to the pump to protect.
3. The standard seals are all used the mechanical seals. Material has FPM and PTFE
4. The pump have the cavitation protection port. When they work under the condition near the limited vacuum, the cavitation protect port opens (or connects with the separator)to get rid of the screaming to protect the pump.
5. Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the pump can be improved by using it. If the parts where the liquid flows are made of the stainless steel, the pumps can be used under the more rigorous condition.
6. Widely used in food industry, textile industry, medicine industry, chemical industry or other industries.
Product details:
| Working Principle: | Liquid ring vacuum pump |
| Main applications: |
Air & Gas, flammables / explosives air |
| Driver: | Electric motor |
| Power Specs: | 220/240/380/415V 3phase; 50hz/60hz |
| Type of connection: | Thread, Flange |
| Installation position: | Horizontal |
| Casing material: | Ductile iron, Stainless steel |
| Impeller material: | Ductile iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal, Packing seal |
| Limited vacuum: | 33mbar (-0.098MPa) |
| Maximum drive rating: | 15KW(20HP) |
| Maximum caliber: | 80mm(3inch) |
| Flow rate range: | 27-500m3/h (15.9-294.1CFM) |
Performance data:
|
Model |
Pumping capacity |
Ultimate vacuum mbar(MPa) |
Motor Power (KW) |
Explosion -proof class |
Motor protection class |
Speed (r/min) |
Water consumption (L/min) |
Noise dB(A) |
Weight (kg) |
|
|
m3/min |
m3/h |
|||||||||
|
2BV2060 |
0.45 |
27 |
33mbar (-0.098MPa) |
0.81 |
No EX |
IP54 |
2840 |
2 |
62 |
31 |
|
2BV2061 |
0.86 |
52 |
1.45 |
2840 |
2 |
65 |
35 |
|||
|
2BV2070 |
1.33 |
80 |
2. 35 |
2860 |
2.5 |
66 |
56 |
|||
|
2BV2071 |
1.83 |
110 |
3. 85 |
2880 |
4. 2 |
72 |
65 |
|||
|
2BV2060-Ex |
0.45 |
27 |
1.1 |
dIIBT4 |
IP55 |
2840 |
2 |
62 |
39 |
|
|
2BV2061-Ex |
0.86 |
52 |
1.5 |
2840 |
2 |
65 |
45 |
|||
|
2BV2070-Ex |
1.33 |
80 |
3 |
2860 |
2.5 |
66 |
66 |
|||
|
2BV2071-Ex |
1.83 |
110 |
4 |
2880 |
4.2 |
72 |
77 |
|||
|
2BV5110 |
2.75 |
165 |
4 |
No EX |
IP54 |
1440 |
6. 7 |
63 |
103 |
|
|
2BV5111 |
3.83 |
230 |
5.5 |
1440 |
8.3 |
68 |
117 |
|||
|
2BV5121 |
4.66 |
280 |
7.5 |
1440 |
10 |
69 |
149 |
|||
|
2BV5131 |
6.66 |
400 |
11 |
1460 |
15 |
73 |
205 |
|||
|
2BV5161 |
8.33 |
500 |
15 |
970 |
20 |
74 |
331 |
|||
|
2BV6110 |
| |||||||||
