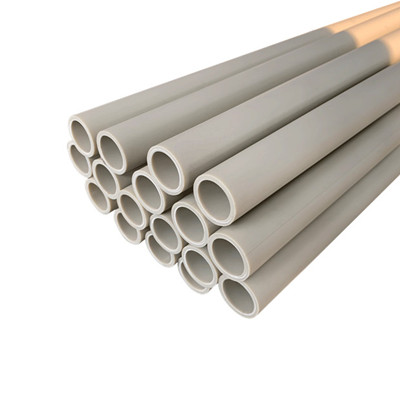

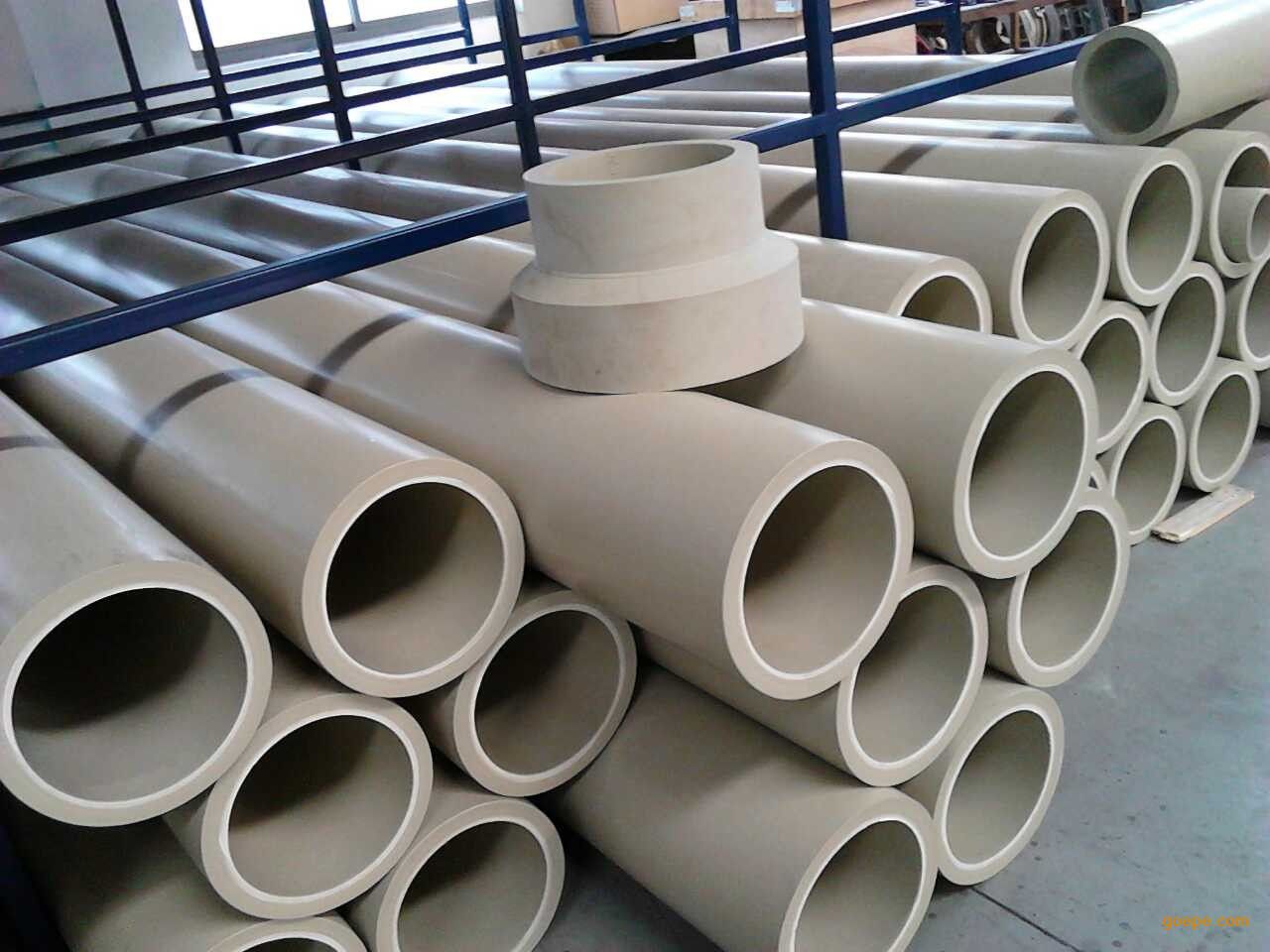

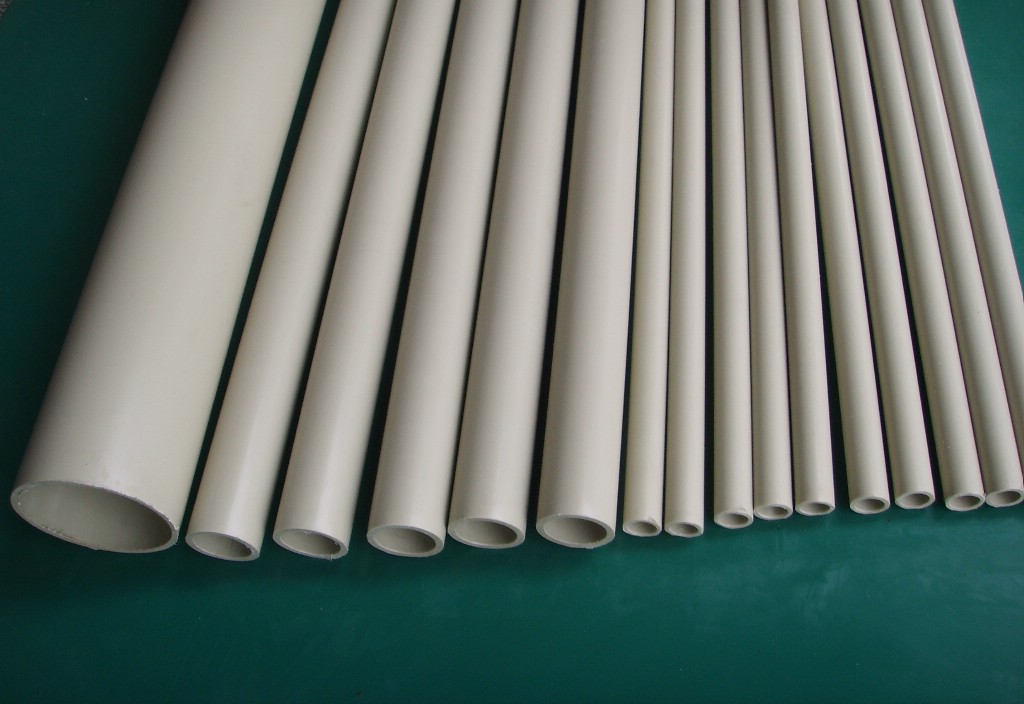

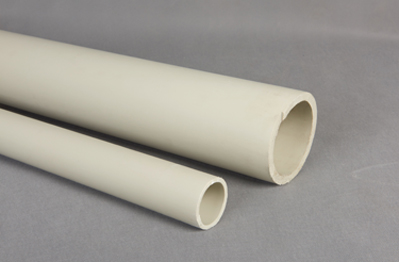

PP-H pipe

  • Size:OD10~OD1400mm
  • Manufacture Standard:DIN8077/8078
  • Length:5M(special length on reqeust)
  • Product description: PP-H pipe
  • INQUIRY

Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment

Features:

* Good weld ability
* High creep resistance
* Expansive application area

* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products

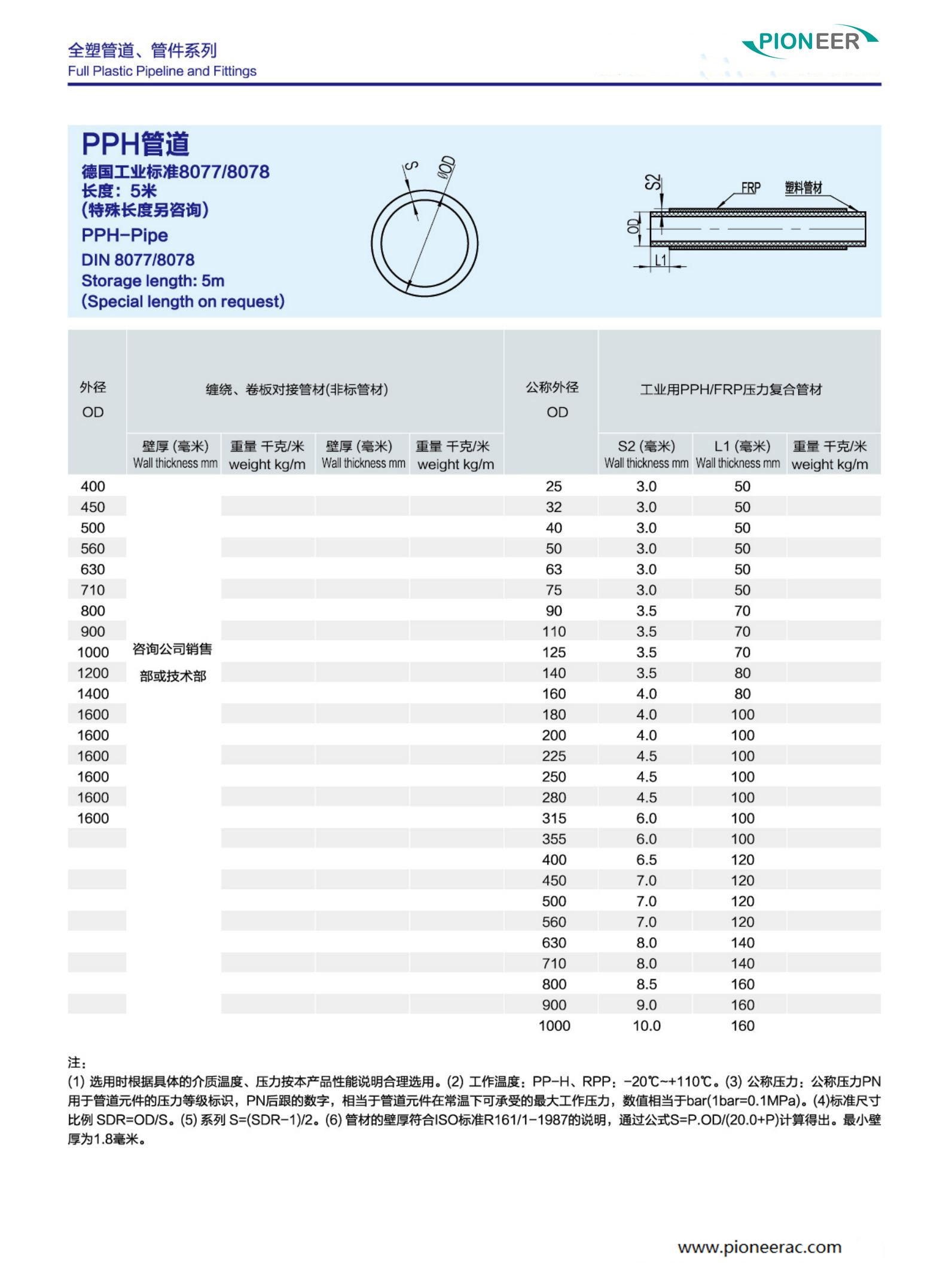

Standard followed:

Manufacture and design DIN 8077/8078
Nominal diameter OD10-1400(mm)
Nominal pressure
PN2.5-PN16(MPa)
Pressure test
DIN, JIS10K
Connection Flange,socket welding

Technical Data:

Length: 5m or as per your requirements
Size Range:
* OD10 - 1400 mm

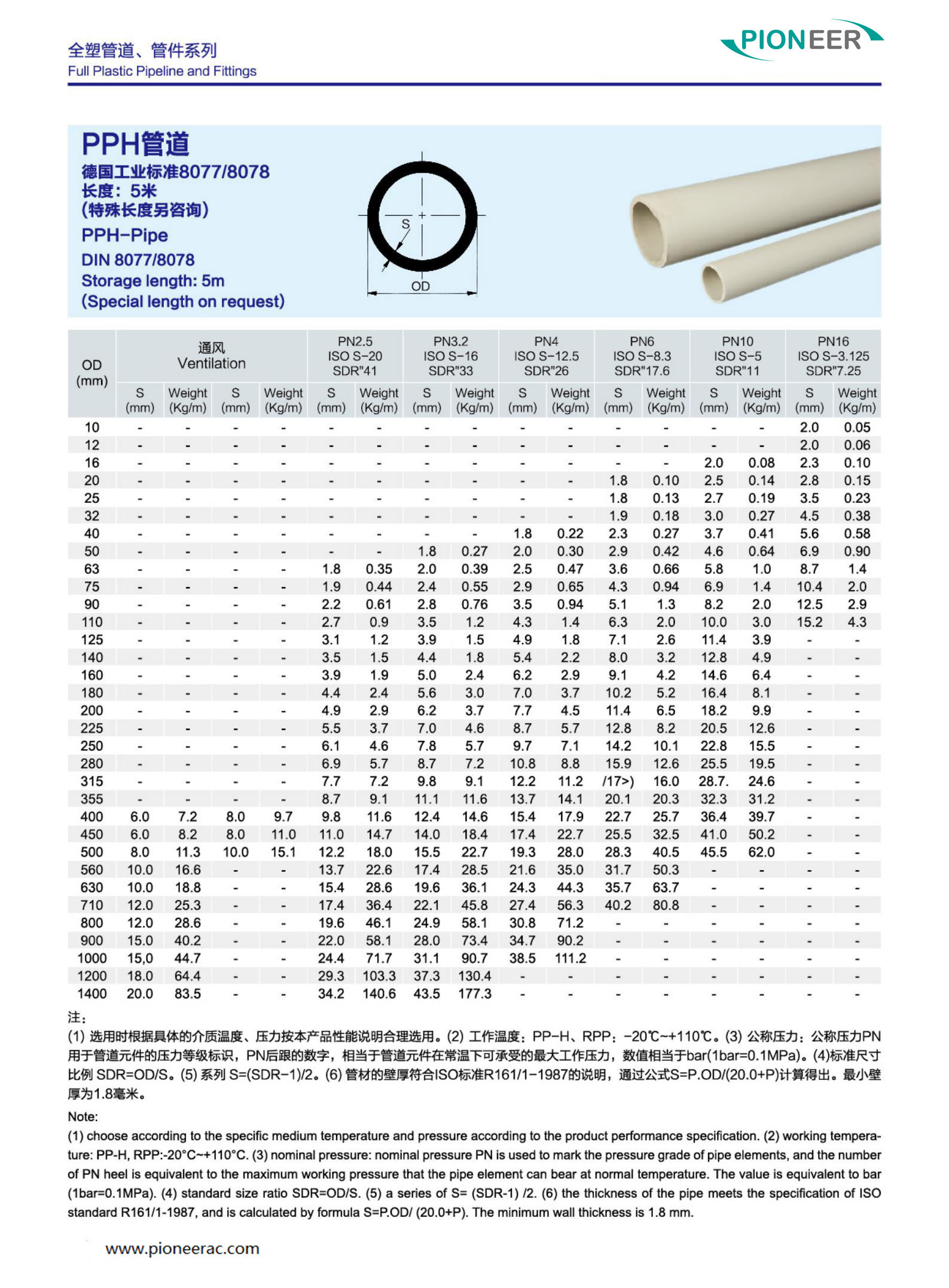

Pressure Rating:
* S1.8 - S34.2 mm, SDR41: PN2.5
* S1.8 - S43.5 mm, SDR33: PN3.2
* S1.8 - S38.5 mm, SDR26: PN4
* S1.8 - S40.2mm, SDR17.6: PN6
* S2.0 - S45.5mm, SDR11: PN10
* S2.0 - S15.2mm,SDR7.25: PN16

Temperature:

*PP-H/FRPP: -20°C ~ 110°C
* PE: -20°C ~ 80°C
*PVDF:-50°C ~ 150°C
*CPVC:0°C ~ 90°C
*CPVC:0°C ~ 60°C
Joining Technology
* Flange, Socket welding
Materials:
* Beta Polypropylene Homopolymer (Beta PP-H)
