Plastic Pipes &Fittings

  • PVDF pipe

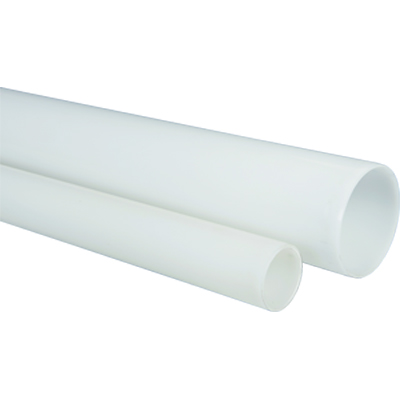

PVDF pipe

PVDF pipe

  • Manufacture Standard:ISO10931
  • Pressure Class;PN10/PN16
  • Storage Length:5M
  • Product description: PVDF pipe
  • INQUIRY

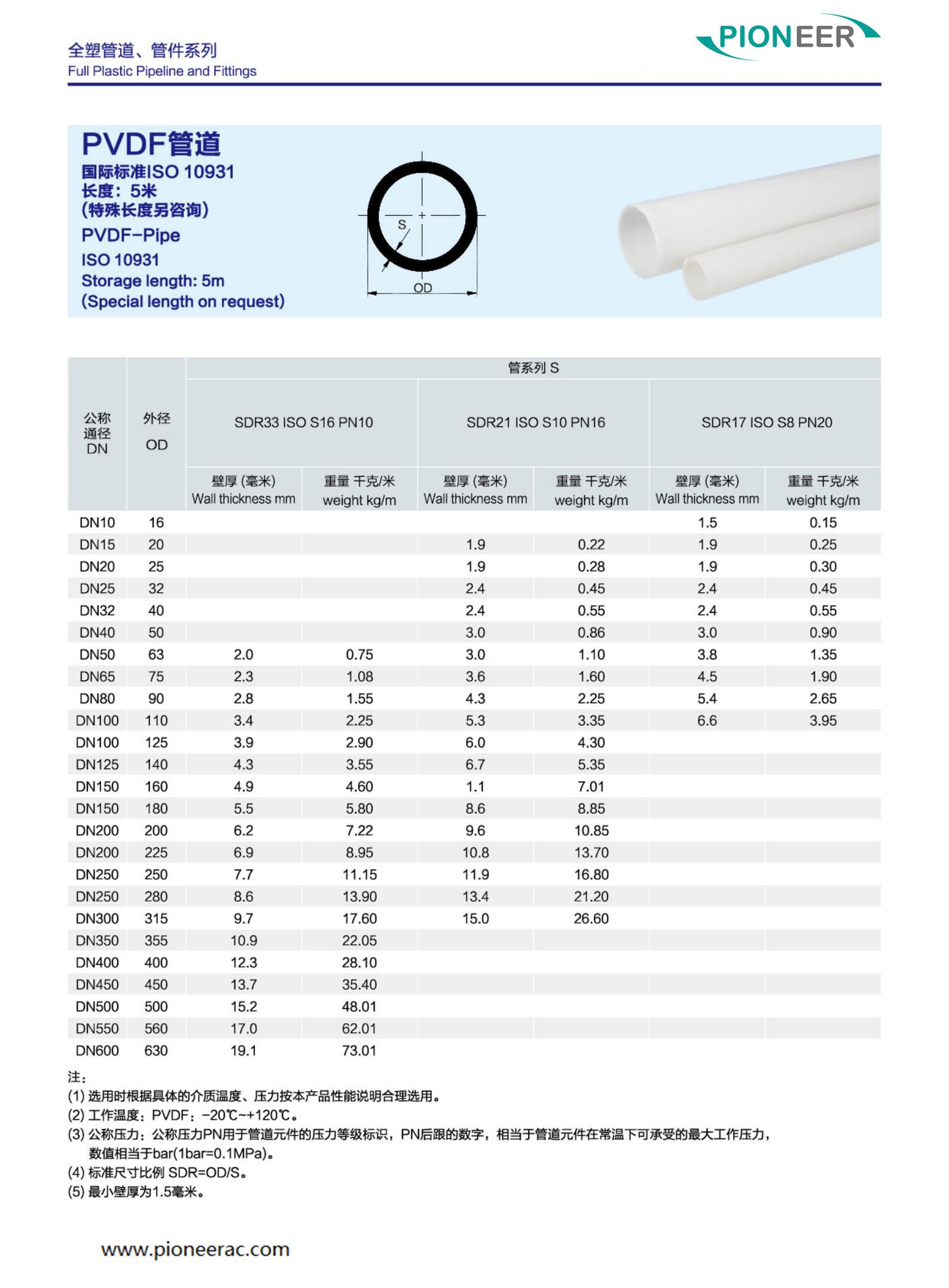

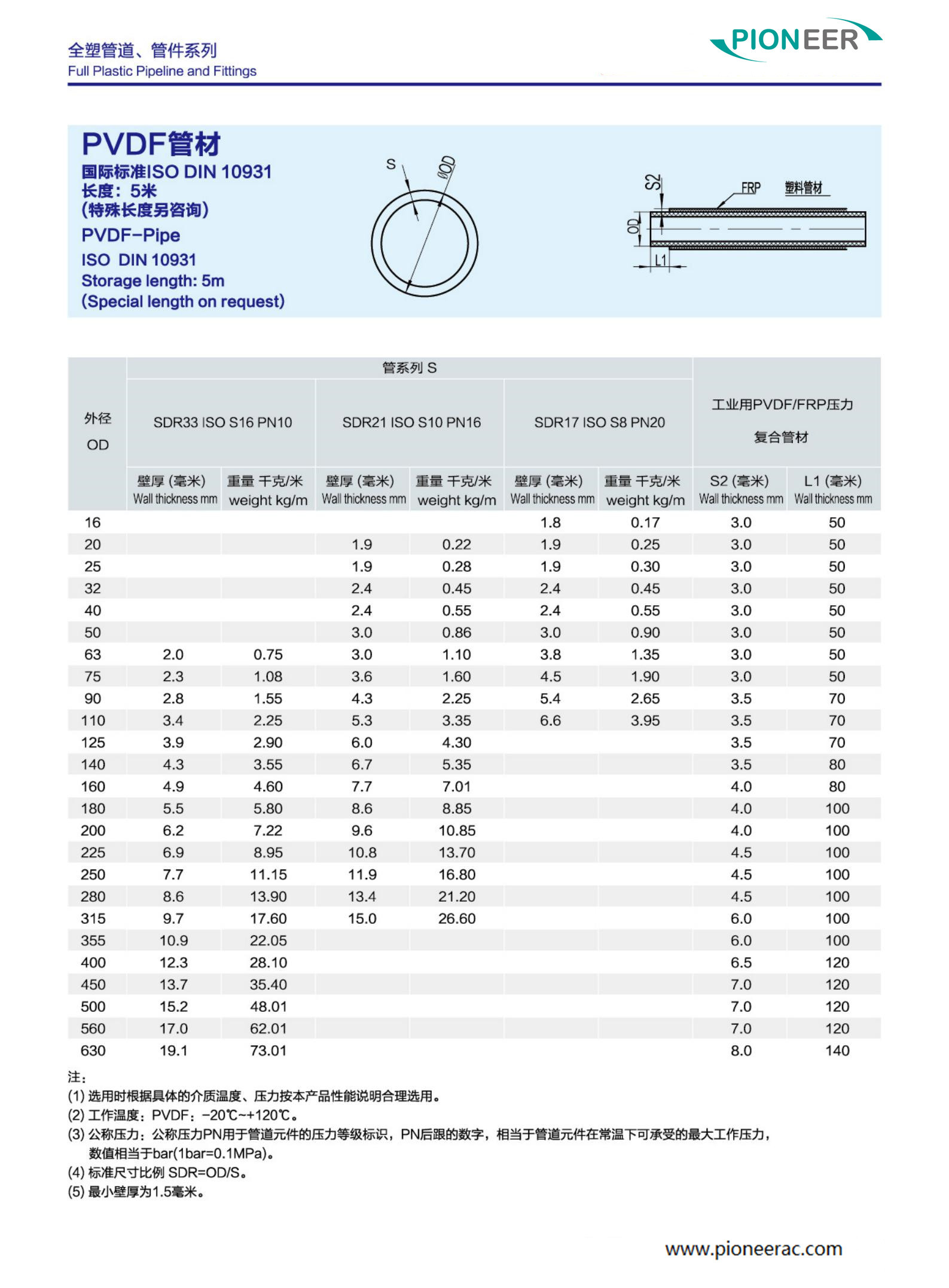

Detailed description
d(mm) PN16
e(mm) weight
16 1.9 0.171
20 1.9 0.209
25 1.9 0.278
32 2.4 0.425
40 2.4 0.55
50 3 0.835
63 3 1.08
75 3.6 1.519
90 4.3 2.232
110 5.3 3.336
140 6.7 5.31
160 7.7 6.96
200 9.6 10.8
225 10.8 13.7


d(mm) PN1.0
e(mm) weight
75 2.8 1.265
90 2.8 1.565
110 3.4 2.14
125 3.9 2.8
140 4.3 3.71
160 4.9 4.657
200 6.2 6.916
225 6.9 9.162
250 7.7 11.1
280 8.6 13.9
315 9.6 17.6
