CQB magnetic pump

  • Lining Material:SS304/316
  • Flow rate:0.6~120m³/h
  • Total different head:80M
  • Product description: CQB magnetic centrifugal pump have no leakage.
  • INQUIRY

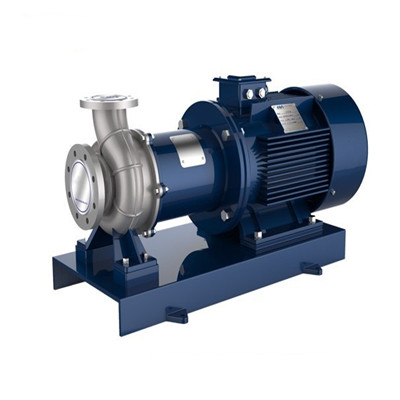

Stainless Steel Magnetic Pump | CQB Series

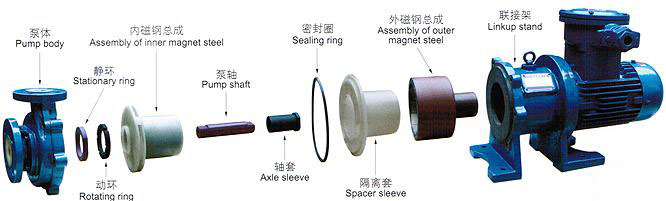

Stainless steel magnetic pump is applicable to pump and transport the acid, alkaline liquid, oil, rare expensive liquid, poisonous liquid, volatile liquid especially to transfer flammable, leaky and explosive liquid.The shaft seal is canceled and it is indirectly driven with magnetic coupling, completely eliminating drop, leakage and won't pollute the working place.


CQB stainless steel magnetic pump can be used for dry-running condition.This magnetic pump has heavy duty models like the mechanical seal type centrifugal pump also. So it can meet different requirement and applications.
Magnet drive designs have become the standard for applications requiring corrosion resistant pumps. Our magnet drive pump designs offer a wide range of capabilities. Ranges are from compact OEM configurations to our large size chemical process pump series. Therefore, this broad range of magnetic coupled pump capabilities is unmatched in the industry making us the leader in magnet drive pump technology home and abroad.

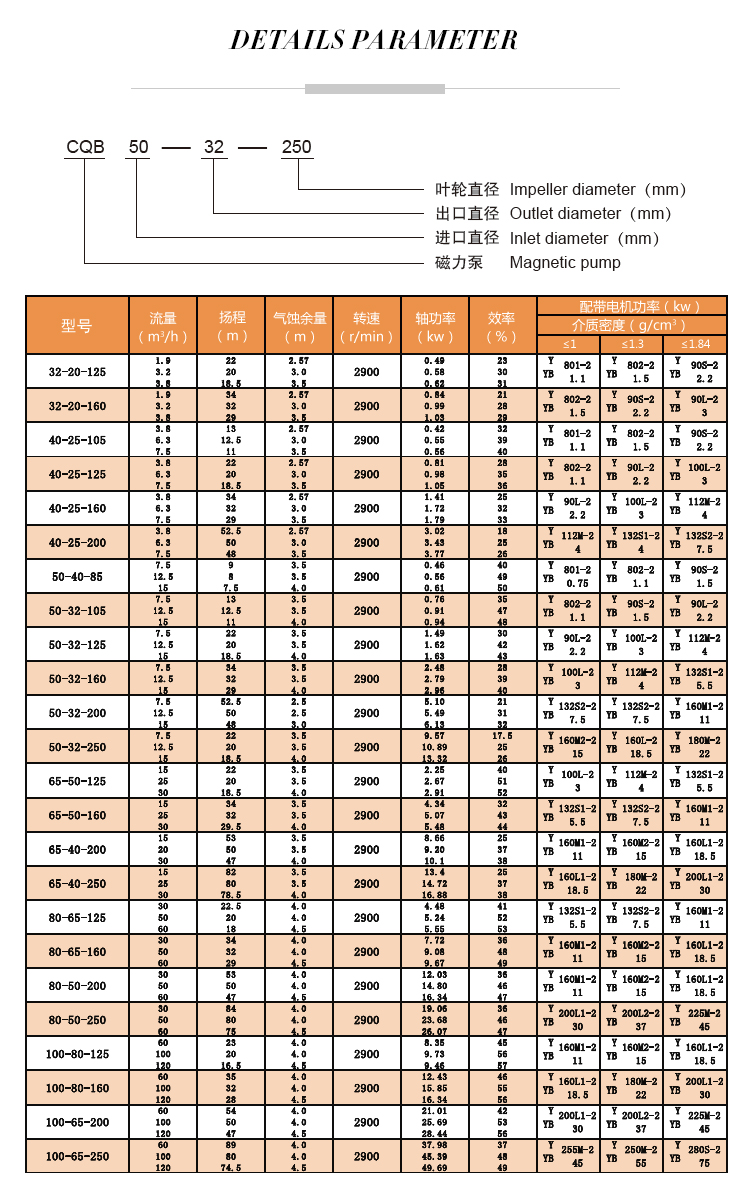

Technical Data:
Flow rate: up to 500 m³/h
Head: up to 150 m
Speed: 1450rpm, 2900rpm, 1750rpm, 3600 rpm and so on
Temperature: max 200 ℃
Casing pressure: up to 2.5 MPa
Material: SS304, SS316, Titanium, Hastelloy C (Both SS304 and SS316 are the normal material for us. However, if customer needs titanium, haste alloy c for special application, we can supply also)
Impeller Type:
Close type
Designed and Manufactured Standard:
ISO2858
Flanges Standard:
DIN2501 PN 16 as norm
ANSI B16.5 150LB for option
JIS PIN10 for option
Material Available:
SS04, SS316, Duplex Stainless Steel, Titanium, Alloy 20 and so on
Application:
Surface treatment
Water treatment
Chemical processing
Food processing
Fluid handling needs and so on
Motors for Pump:
Siemens China, Wannan China, ABB China
NEMA and IEC motors are available
