Magnetic Pump

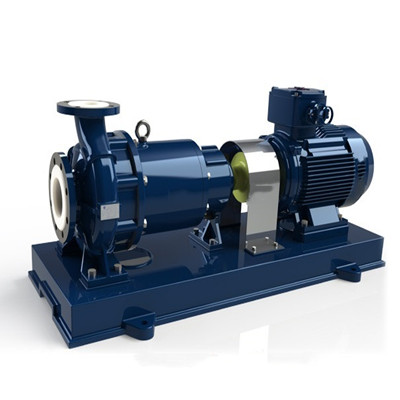

IMD magnetic pump
- Lining Material:FEP/PFA
- Flow rate:1~120m³/h
- Different head:2~50M
- Product description: IMD type FEP lined magentic pump
1.OVERVIEWS:
It is applicable to pump and transport the acid, alkaline liquid, oil, rare expensive liquid,
poisonous liquid, volatile liquid and water circulation equipment, especially the pumping
and transportation of the flammable, leaky and explosive liquid.
2.Magnetic Drive Centrifugal Pump
1.Capacity:1-120m3/h
2.Head:1-50m
3.Application:Acid and chemicals
4.Material:FEP,PFA,PTFE
|
Pump Data Sheet |
|
|
Flowrate |
0.5-120 m3/h |
|
Head |
1-50m |
|
Size |
DN25-DN125 |
|
Material |
FEP,PFA,Fluoroplastic Alloy |
|
Service Temperature |
120 Deg.C Max. |
|
Flange Connection |
DIN2501 PN16 or ANSI B16.5 150LB |
|
Bearing |
PTFE based resin |
|
Mouth Ring |
SIC or Ceramic |
|
Spacer Sleeve |
FEP+PEEK(PFA+PEEK) |
|
Shaft |
SIC or Ceramic |
|
Motor |
IEC Standard |
|
Applications |
Chemical Industry |
Operating Range
Capacity :Up To 120 M3/Hr.
Head:Up To 53 Mtr.
Pump
Sizes:DN25 mm to 150 mm.
Speed:2900rpm at 50 Hz
Temperature:120 DEG.C Max.
